Wi-Tek WI-PS210GS (V2) PoE switch, 8x PoE
New
Your price incl. VAT (20.0%)
39.24 EUR / 76.75 BGN
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 15-04-2026
You have a choice of 3 variants
Product description

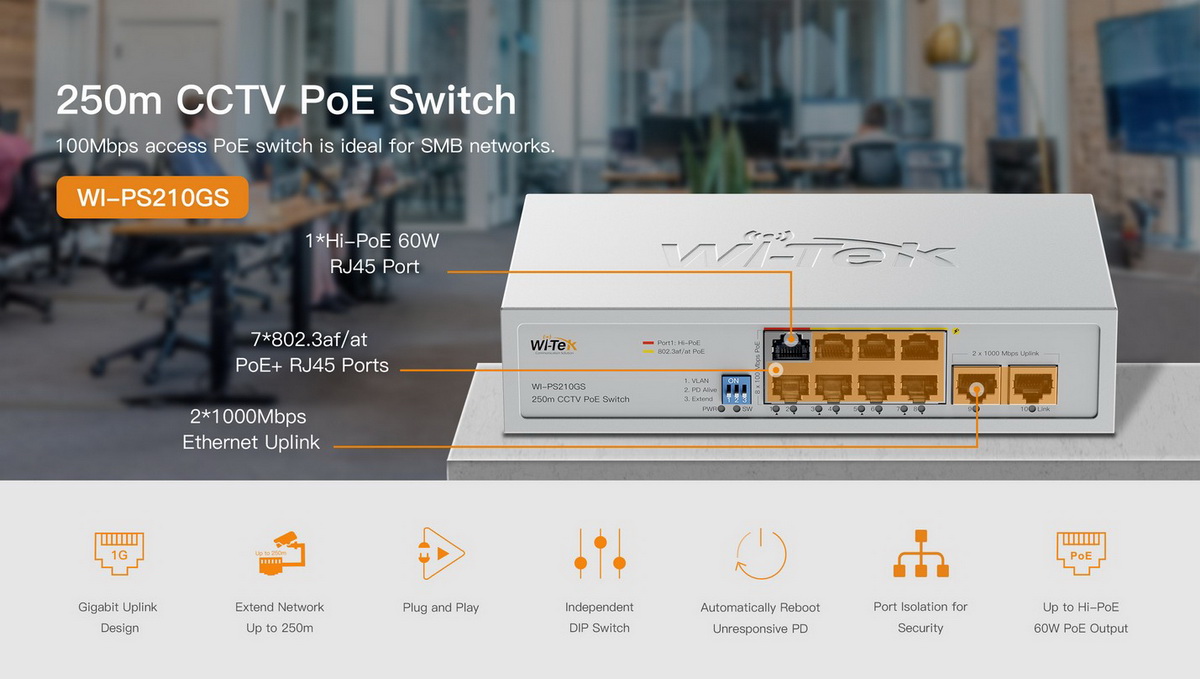

Wi-Tek WI-PS210GS (V2) is an unmanaged PoE switch with (10) ports in a combination of (2) 1Gbps UP-link ports and (8) 100Mbps PoE-OUT ports. The first PoE-OUT port supports powering devices with up to 60 W per port thanks to Hi-PoE technology, while the remaining seven PoE-OUT ports provide PoE 802.3af/at up to 30 W per port. The total PoE budget is 95 W. The switch is ideal for applications where you need to connect and power devices such as IP cameras (including PTZ) or IP phones.
DIP Switch for Mode Selection
The DIP switch on the front of the switch allows you to select modes so that the switch can adapt to the needs of your network:
- 1. VLAN: Port isolation – PoE ports can send data only to the up-link port.
- 2. PD Alive: PoE watchdog that can detect and restart non-responsive devices powered via PoE.
- 3. Extend: The transmission distance of PoE ports can reach up to 250 m when the link speed is reduced to 10 Mbps.
Package Contents
- Device
- Power cable
- Quick Installation Guide
Download
Technical parameters
LAN ports
Design
On the wall, Desktop
Switchning capacity [Gbps]
5,6
MAC address table
2000
Power type
Mains power (230V)
Fans
No
LAN speed
(8) 10/100Mbps + (2) 10/100/1000Mbps
Max. LAN ports speed
100M, 1G uplink
PoE type
PoE-Out (only)
RJ45 ports 100M
10
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
95
Long range PoE - up to 250m
Yes
Max. power consumption [W]
5
Chassis design
Metal
Buttons
Auto Recovery, Extend mode, Isolation port
Operating temperature [°C]
0 up to 40
Weight [g]
620
Width [mm]
200
Height [mm]
44
Depth [mm]
118
