Grandstream GWN7803PL Pro, Gigabit PoE switch
Your price incl. VAT (20.0%)
309.41 EUR / 605.15 BGN
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 24-06-2026
You have a choice of 7 variants
6.33 EUR / 12.38 BGN excl. VAT
10.54 EUR / 20.61 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
13.72 EUR / 26.83 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
13.72 EUR / 26.83 BGN excl. VAT
Product description
The Grandstream GWN7803PL Pro is a managed L2+ switch with a switching capacity of 88Gbps, offering (24) 1G PoE+ ports, a PoE budget of 250W, (2) SFP+ slots and support for management via local web interface, GDMS cloud management and GWN Manager.

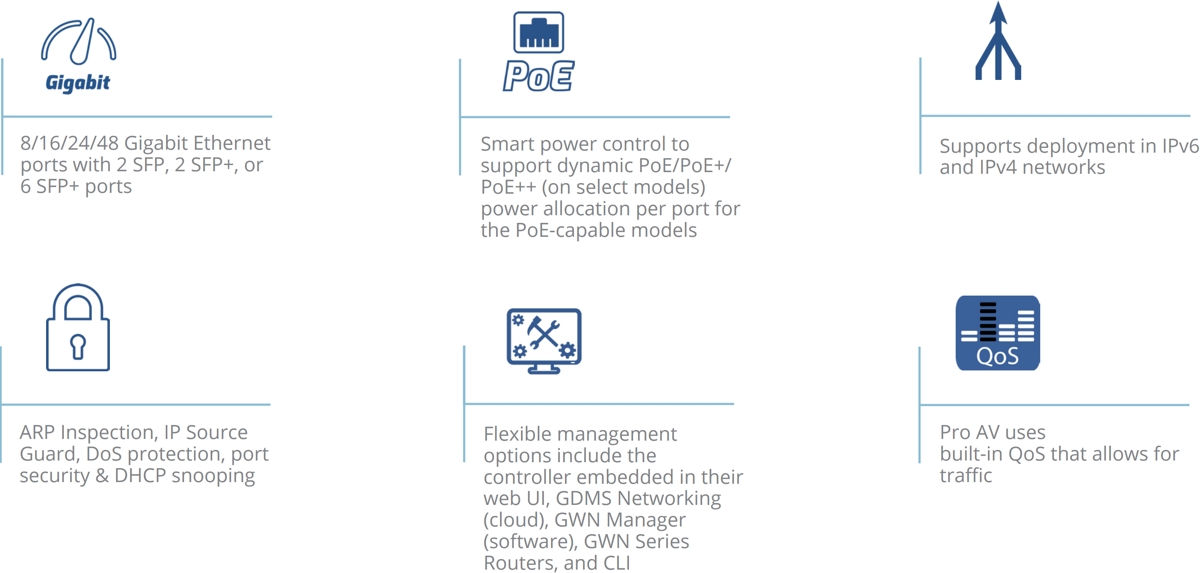

Key features
- (24) 1Gbps PoE+ ports, (2) SFP+ slots and (1) RJ45 console port
- 802.3af/at PoE+ with up to 30W/port and a total budget of up to 250W
- Convenient and intelligent management via the web user interface and the cloud
- VLAN, QoS, ARP Inspection, IP Source Guard, DoS protection, port security and DHCP snooping
Package contents
- Device
- Rack mounting kit
- Power cable
Technical parameters
LAN ports
Jumbo frame [Bytes]
12000
Design
Rackmount
Packet forwarding rate [Mpps]
65,48
Switchning capacity [Gbps]
88
MAC address table
16000
Web management
Yes
Management
Cloud (GDMS), Web management, SSH, Telnet
Features
L2+, VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN speed
(24) 10/100/1000Mbps
Management LAN
Yes
PoE type
PoE-Out (only)
RJ45 ports 1G
24
SFP+ cages
2
Optical interfaces
(2) 10Gbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
24
PoE budget [W]
250
Max. power consumption [W]
300
Serial port
RJ45
Chassis design
Metal
Buttons
Reset
Operating temperature [°C]
0 up to 45
Depth [mm]
200
Width [mm]
440
Height [mm]
44
Default IP address
192.168.0.254, Dynamic from DHCP
Default login and password
admin / (preset password, see label/engraving)
