Product description

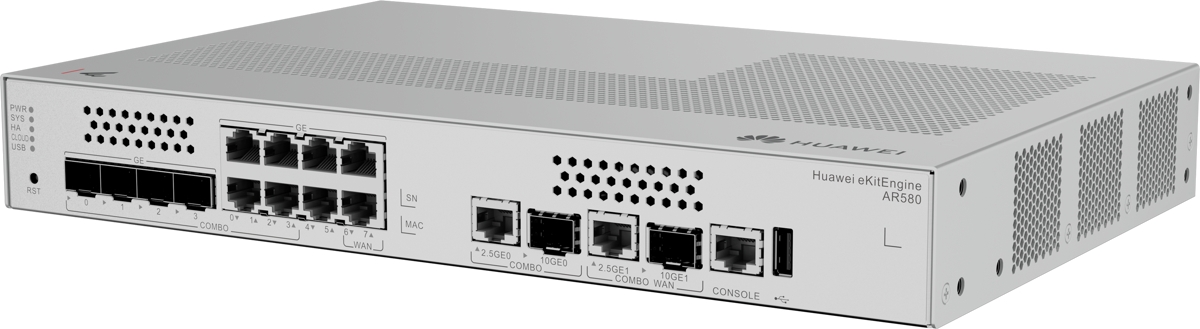

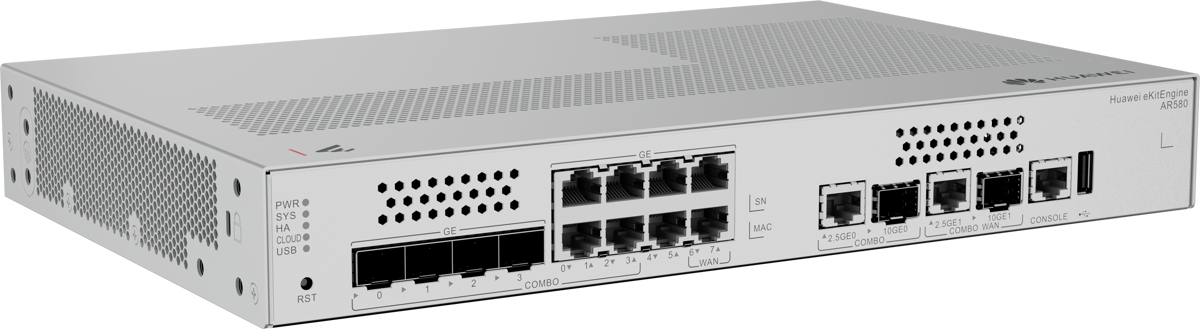

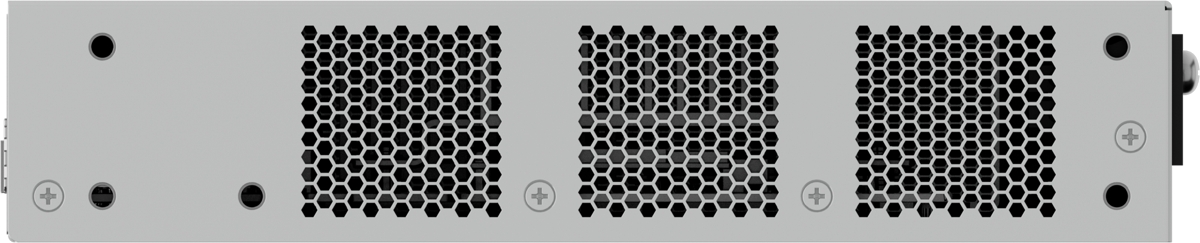

The Huawei eKitEngine AR580 is an all-in-one router equipped with (2) 2.5G RJ45/10G SFP+ combo ports, (4) 1G SFP/RJ45 combo ports and (4) 1G ports. It supports management via a local web interface as well as cloud management (eKit SNC / eKit mobile app). It is recommended for up to 500 clients and management of up to 64 APs.
Key features

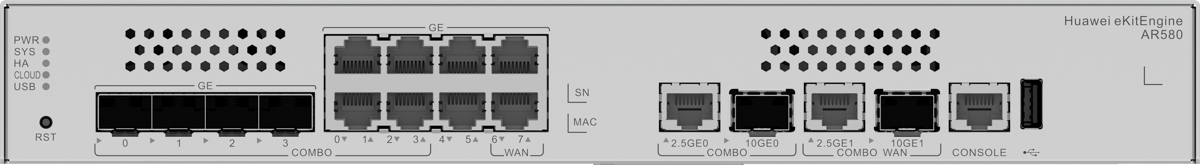

- (2) 2.5G RJ45/10G SFP+ combo ports, (4) 1Gbps SFP/RJ45 combo ports, (4) 1Gbps ports, (1) USB 2.0 port and (1) RJ45 console port
- Integrates firewall, IPS, antivirus, URL filtering and WAC
- Supports LAN/WAN switching on all ports
- Easy management via the eKit SNC / eKit mobile app
- Multi-WAN with load balancing
- High availability (HA) support
- VPN support, including site-to-site VPN

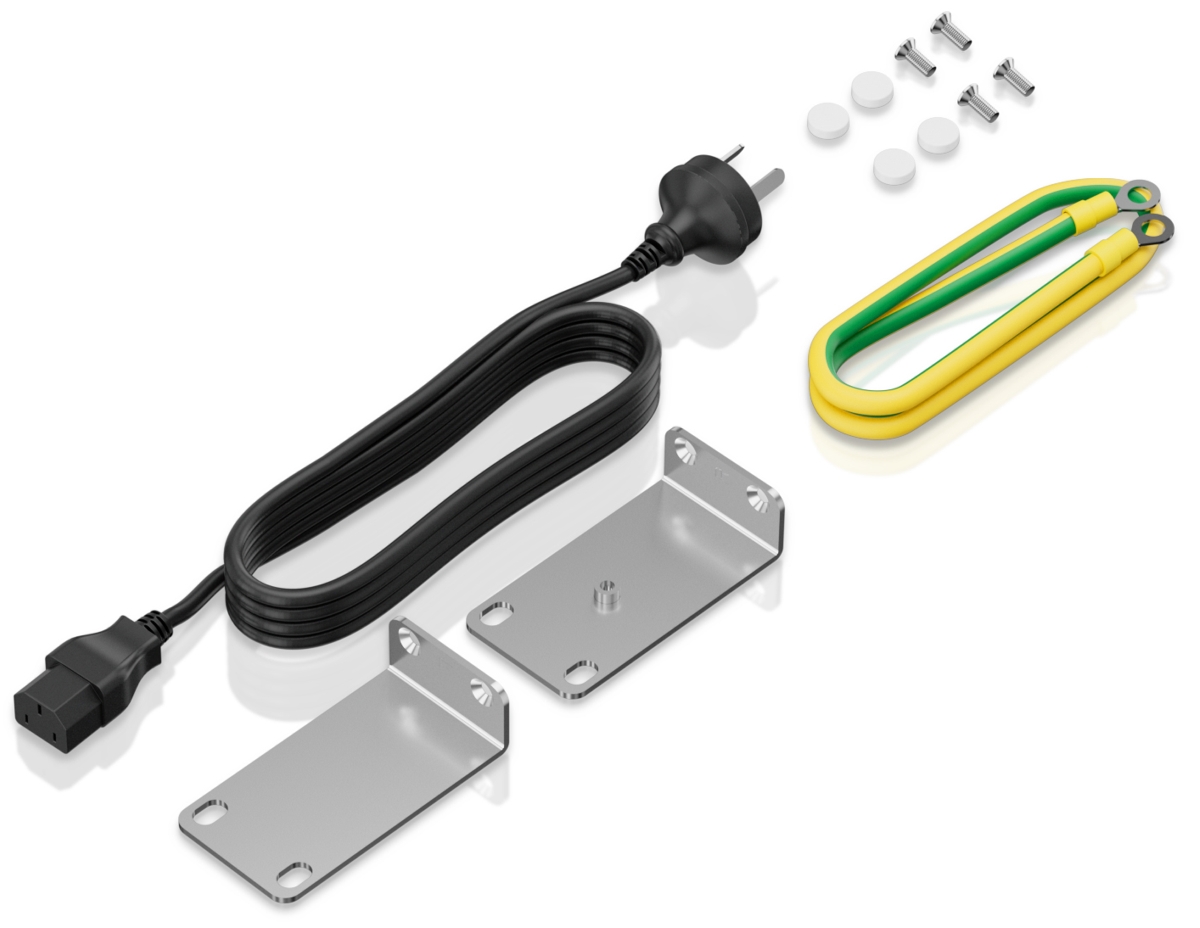

Package contents
- Device
- Power cable
- Grounding cable
- Rack ears
Download
Technical parameters
LAN ports
Design
Desktop, Rackmount
Multiple WAN
Yes
Supported VPN
GRE, IPSec, L2TP
Management
eKit cloud / eKit app, Web management

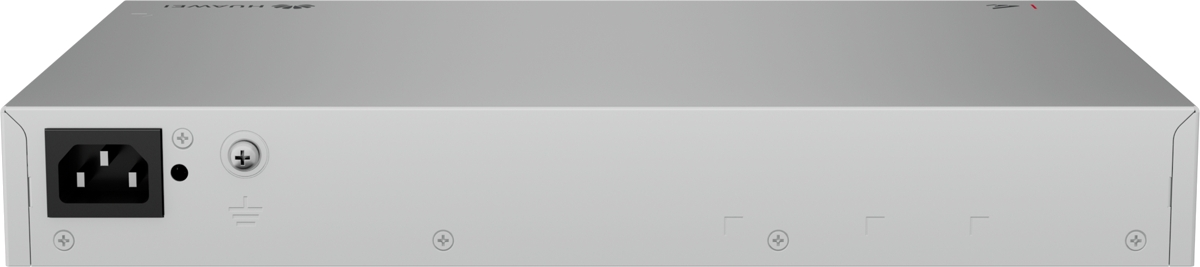

Power type
Mains power (230V)
Fans
No
LAN speed
(2) 100/1000/2500Mbps Combo + (4) 10/100/1000Mbps Combo + (4) 10/100/1000Mbps
LAN ports 1G
8
LAN ports 2.5G
2
Gigabit LAN
Yes
SFP cages
4
SFP+ cages
2
Optical interfaces
(2) 10Gbps Combo + (4) 1000Mbps Combo
Max. power consumption [W]
15
Serial port
RJ45
Buttons
Reset
Operating temperature [°C]
0 up to 45
Weight [g]
1900
Width [mm]
320
Height [mm]
44
Depth [mm]
210
CPU frequency [MHz]
1600
CPU cores
4
USB
Yes
IPv6 support
Yes
RAM [MB]
4096
