Huawei AR580Plus, 2.5G gateway
Your price incl. VAT (20.0%)
430.70 EUR / 842.38 BGN
Ordered for stock
No confirmed delivery date
240.57 EUR / 470.51 BGN excl. VAT
6.53 EUR / 12.77 BGN excl. VAT
10.87 EUR / 21.26 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
14.15 EUR / 27.67 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
14.15 EUR / 27.67 BGN excl. VAT
Product description

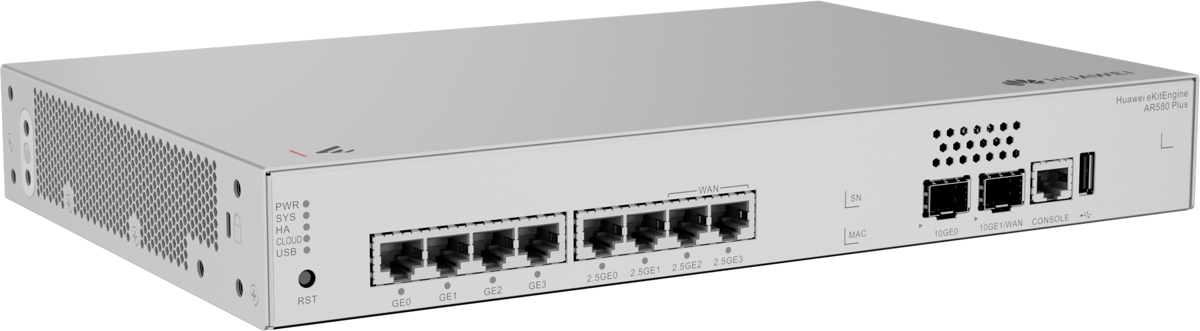

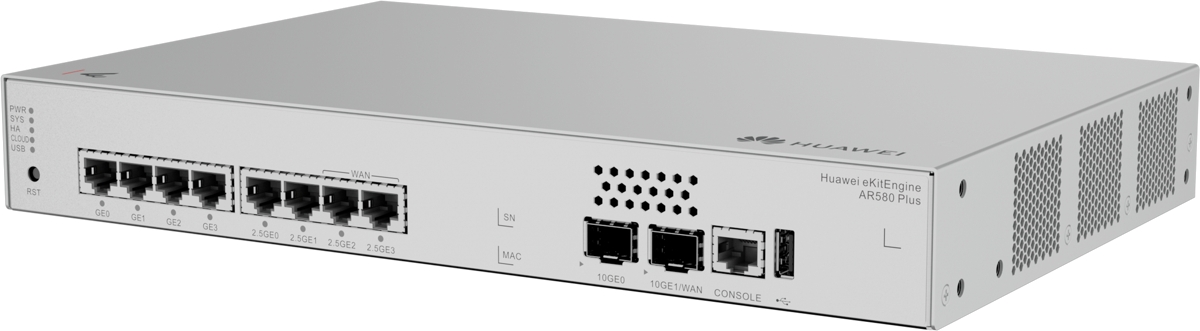

The Huawei eKitEngine AR580Plus is an all-in-one router equipped with (4) 2.5G ports, (4) 1G ports and (2) SFP+ slots. It supports management via a local web interface as well as cloud management (eKit SNC / eKit mobile app). It is recommended for up to 700 clients and management of up to 64 APs.
Key features

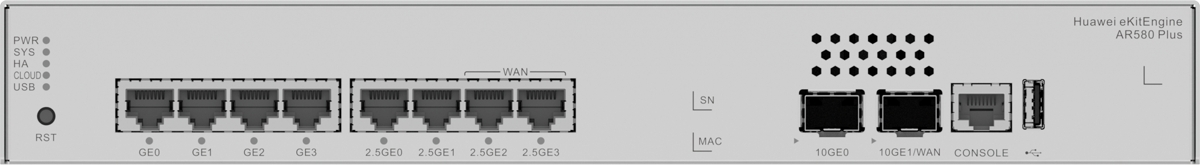

- (4) 2.5Gbps ports, (4) 1Gbps ports, (2) SFP+ slots, (1) USB 2.0 port and (1) RJ45 console port
- Integrates firewall, IPS, antivirus, URL filtering and WAC
- Supports LAN/WAN switching on all ports
- Easy management via the eKit SNC / eKit mobile app
- Multi-WAN with load balancing
- High availability (HA) support
- VPN support, including site-to-site VPN

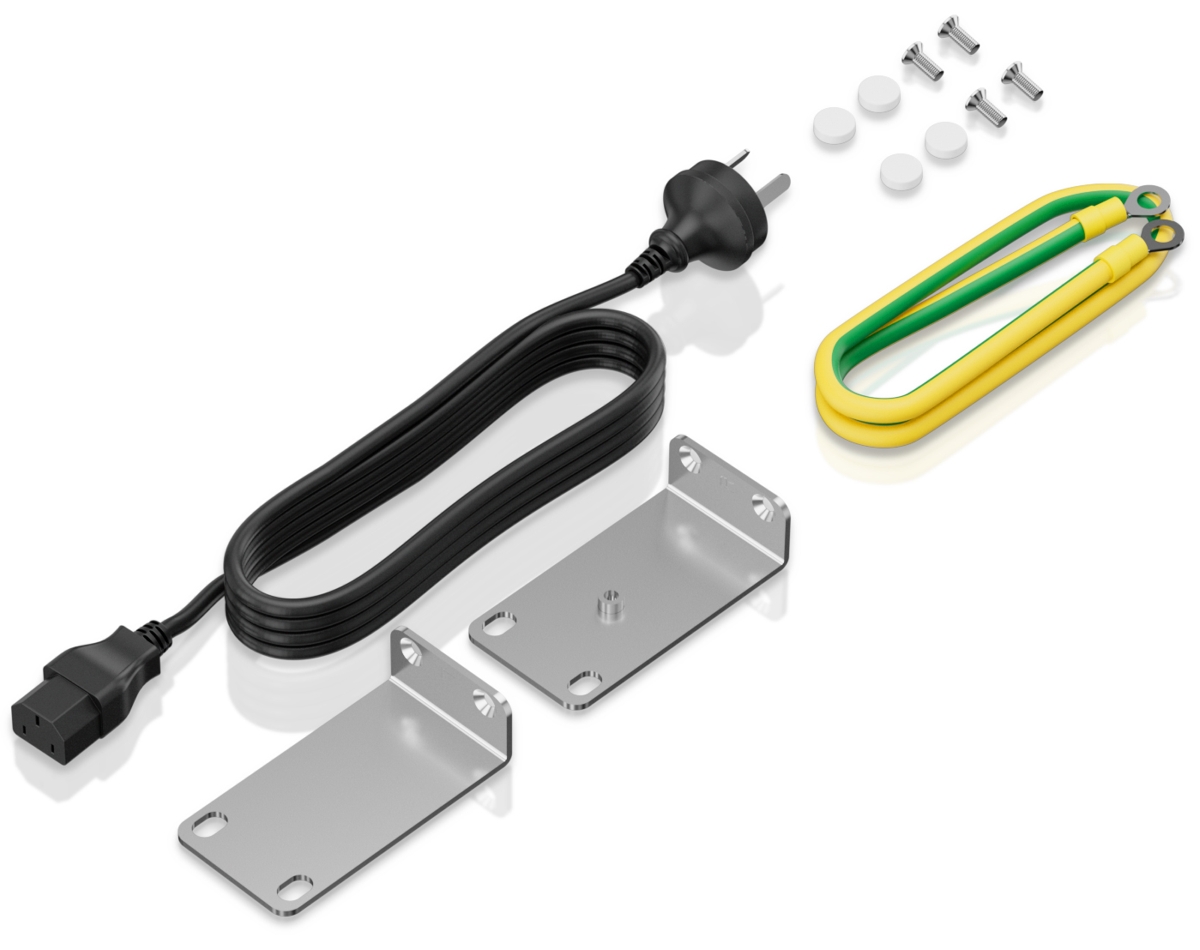

Package contents
- Device
- Power cable
- Grounding cable
- Rack ears
Download
Technical parameters
LAN ports
Design
Desktop, Rackmount
Multiple WAN
Yes
Supported VPN
GRE, IPSec, L2TP
Management
eKit cloud / eKit app, Web management
Power type
Mains power (230V)
Fans
Yes
LAN speed
(4) 100/1000/2500Mbps + (4) 10/100/1000Mbps
LAN ports 1G
4
LAN ports 2.5G
4
Gigabit LAN
Yes
SFP+ cages
2
Optical interfaces
(2) 10Gbps
Max. power consumption [W]
38
Serial port
RJ45
Buttons
Reset
Operating temperature [°C]
0 up to 45
Weight [g]
1940
Width [mm]
320
Height [mm]
44
Depth [mm]
210
CPU frequency [MHz]
1400
CPU cores
4
USB
Yes
IPv6 support
Yes
RAM [MB]
4096
