Ubiquiti UF-OLT-4 - U Fiber OLT, 4x GPON

Ubiquiti UF-OLT-4 - U Fiber OLT, 4x GPON
Your price incl. VAT (20.0%)
1,996.50 BGN
Ordered for stock
Delivery No confirmed delivery date
Ubiquiti Networks
Manufacturer
Product number
UF-OLT-4
Product Code
RL004.531
Warranty
24 months

Product description

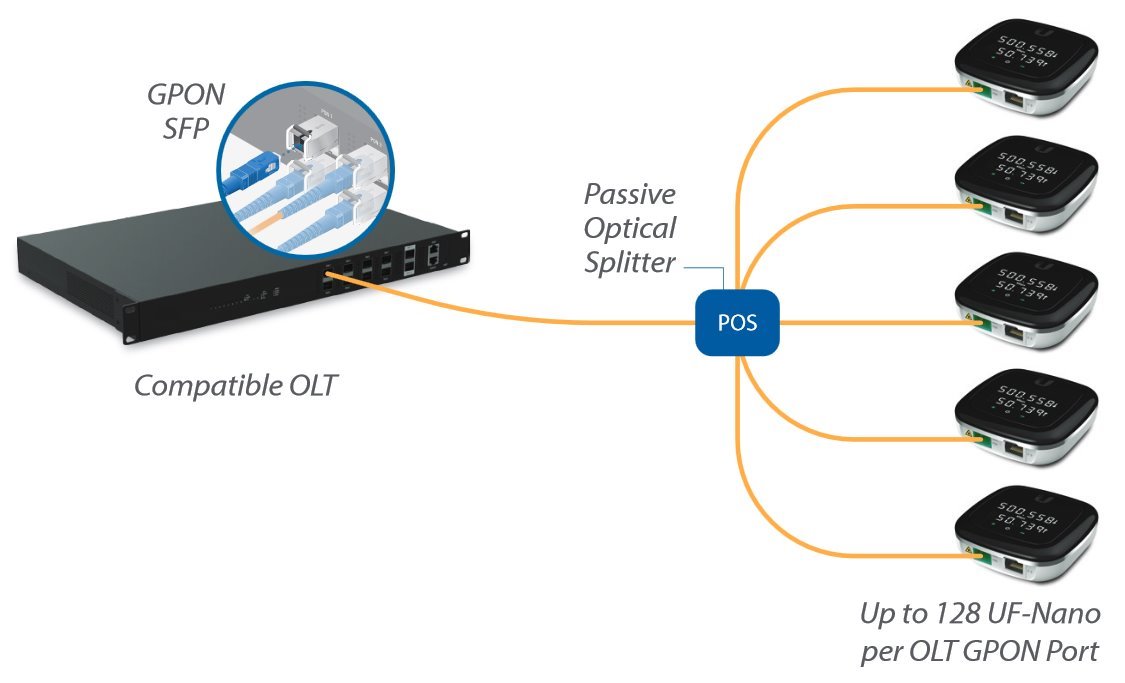

UFiber OLT 4 offering 4 GPON ports with support up to 128 clients per port, overall up to 512 concurrent clients with physical fibers up to 20 km.

UF-OLT 4

UF-OLT-4 has 4 GPON port and 1 SFP+ port with 1/10G modulation speed, one ethernet port designed only for management and one console port.

Management

OLT management has never been easier! The device itself has a web interface where you can see which units are currently connected, upgrade in bulk firmware, etc. The biggest advantage, however, is central management using UNMS (Ubiquiti Network Management System) software.

UNMS

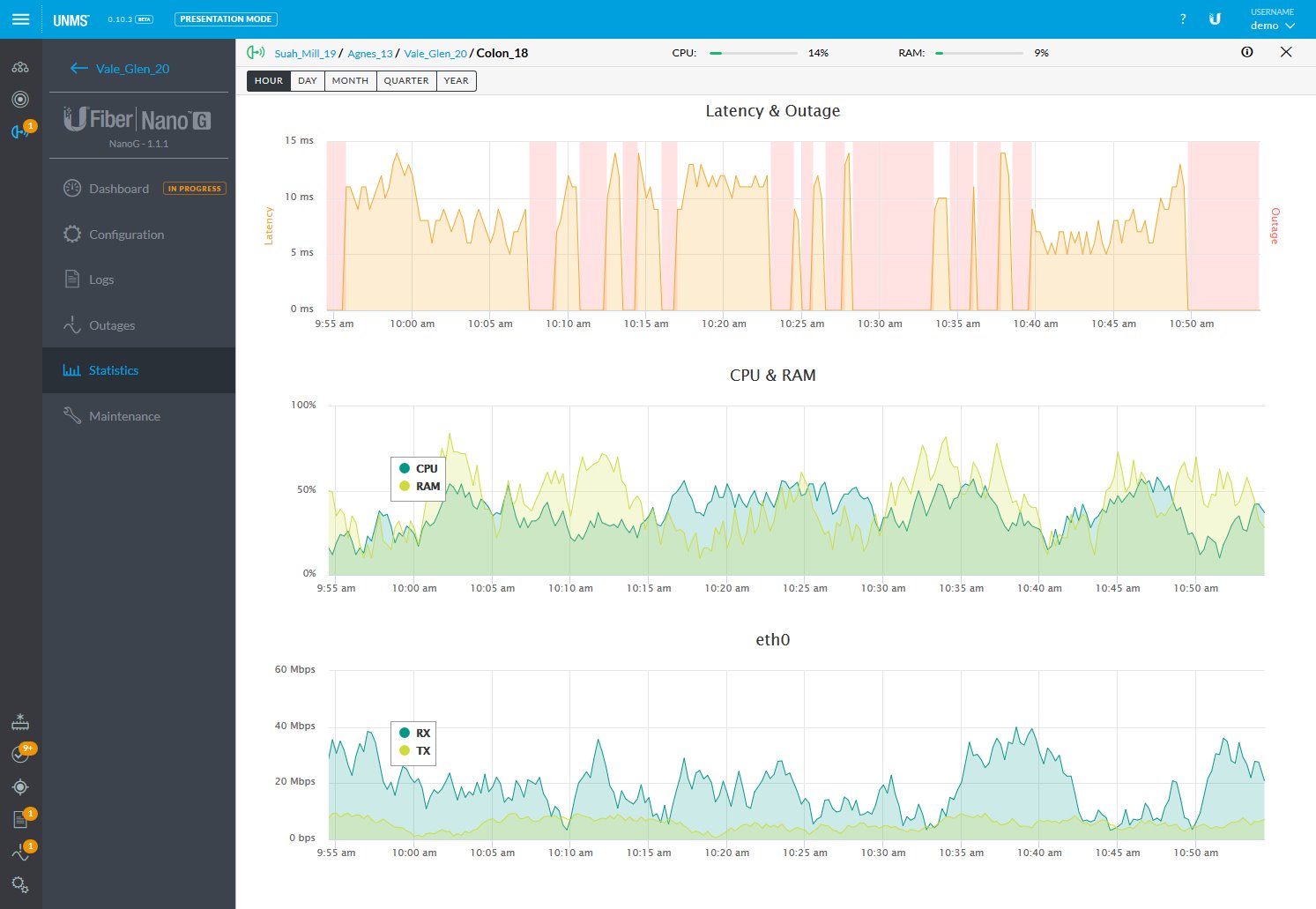

UNMS is a comprehensive management solution not only for OLT and their clients, but also for any Ubiquiti portfolio, such as airMAX, UniFi, EdgeRouter, EdgePoint, EdgeMax and more ... More about support at unms.com. Controller can be downloaded and installed on Linux. The cloud solution is not yet supported, however it is possible to rent a hosted solution eg here.

UNMS

Package contains

  • Device
  • GPON SFP module (UF-GP-B+)
  • Power cord

Download

https://dl.ubnt.com/ds/uf_gpon
Download Datasheet

Technical parameters

LAN ports
Size
19"
Design
Rackmount, Desktop
Tx power [dBm]
1.5 up to 5
Distance [km]
20
Transfer type
GPON
LAN ports
1
LAN speed
(1) 10/100Mbps (management)
SFP+ cages
1 (podpora 1G/10G)
PON SFP cages
4
Optical interfaces
(1) 1/10Gbps
Receiver sensitivity [dBm]
-8 up to -28
Max. power consumption [W]
35
Serial port
RJ45
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
-10 up to 45
Width [mm]
300
Height [mm]
42
Depth [mm]
259
Default IP address
192.168.1.1, 192.168.1.20, Dynamic from DHCP
Default login and password
ubnt / ubnt
