Ubiquiti UF-WiFi - UFiber WiFi

Ubiquiti UF-WiFi - UFiber WiFi
Your price incl. VAT (20.0%)
143.06 BGN
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 13-11-2024
Ubiquiti Networks
Manufacturer
Product number
UF-WiFi
Product Code
RL006.185
Warranty
24 months

Product description

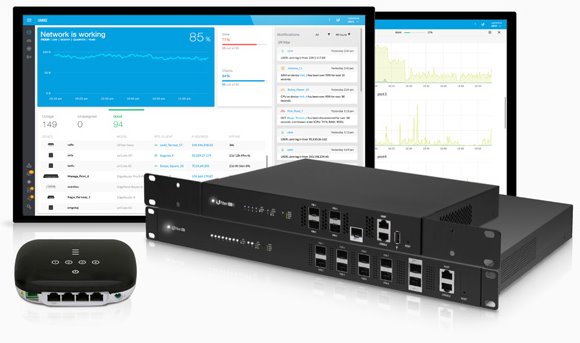

Sporting a sleek industrial design, the UFiber WiFi is a robust, high-performance GPON CPE that features an informational LED display with 4 Ethernet ports and WiFi. *Router function will be supported in future firmware.

Versatile Power

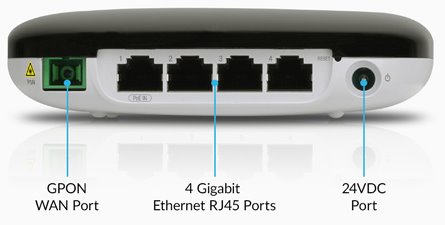

The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC.

UBNT UF-WiFi

Designed for Integration

Up to 128 UFiber WiFi devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.

UBNT UF-WiFi

Package contains

  • Device
  • Power adapter 24V/0.5A
  • Screws

Download

https://dl.ubnt.com/ds/uf_gpon
Download Datasheet
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html
Download Quick Guide

Technical parameters

LAN ports
Power over Ethernet
24V DC
Tx power [dBm]
1.5 up to 5
Transmission speed - 2.4GHz [Mb/s]
300
Optical Connectors
(1) SC
2.4GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Transmission speed
2.488 / 1.244 Gbps
Transfer type
GPON
Polishing type
APC
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Gigabit LAN
Yes
Receiver sensitivity [dBm]
-8 up to -28
Max. power consumption [W]
7
Power via connector/terminal
20 .. 28V DC
Buttons
Reset
Operating temperature [°C]
-10 up to 45
Weight [g]
190
Width [mm]
126
Height [mm]
32
Depth [mm]
126
Default IP address
192.168.1.1
Default login and password
ubnt / ubnt
