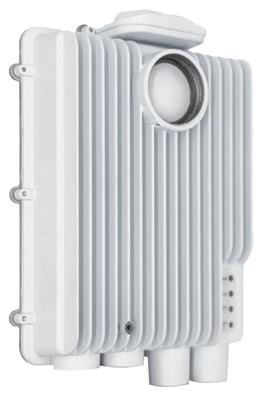

Mimosa B6x
Bestseller
Your price incl. VAT (20.0%)
1,301.74 BGN
Comandat pentru disponibilitate
Data de livrare planificată prin curier către dvs 23-04-2025
15.78 BGN excl. VAT
Masterlan AE fiber optic outdoor patch cord, LCupc/LCupc, Duplex, Singlemode 9/125, 20mLCupc/LCupc-SMD20out
28.62 BGN excl. VAT
Download
Technical parameters
LAN ports
Maximum modulation
1024 QAM
Protection class
IP67
Sensitivity [dBm]
-56
Frequency range [MHz]
5150 - 6425
Power over Ethernet
48 .. 56V DC
Operating mode
Bridge
Wireless frequency
5 GHz, 6 GHz
WiFi standards
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]
4300
Transmission speed - 6GHz [Mb/s]
4300
Tx power 5GHz [dBm]
24
Tx power 6GHz [dBm]
24
Security
128bit AES
5GHz MIMO
4 x 4
6GHz MIMO
4 x 4
Type of antenna
Built-in, Detachable
RF connectors
Twist-on port (Mimosa)
Purpose
Outdoor
Antenna gain [dBi]
8
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Optical interfaces
(1) 10Gbps
Max. power consumption [W]
30
Power via connector/terminal
48 .. 56V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 55
Weight [g]
1700
Depth [mm]
89
Width [mm]
167
Height [mm]
290
Default IP address
Dynamic from DHCP, 192.168.1.10
Default login and password
Is set by the user at the first startup
GPS modul
Yes
