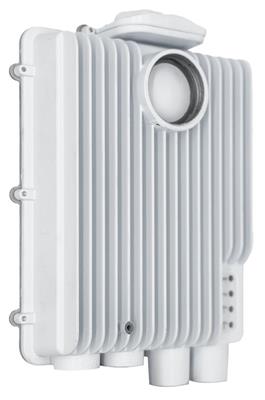

Mimosa B6x
Вашата цена с ДДС (20.0%)
1,271.00 лв
Поръчан за склад
Планирана Дата Доставка на Куриер до Вас 03-07-2024
15.71 лв без ДДС
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукMimosa B6x is an outdoor PtP unit. It operates in the 5.15 to 6.4 GHz band. The unit can be connected to N5-X twist on compatible antennas (antenna not included). It has the new Wi-Fi 6E technology with OFDMA. With access to the 6 GHz band, the B6x achieves extremely low latency (1ms) with speeds up to 3.14 Gbps. The transmit power in the 6 GHz band is 24 dBm. The advantage is also higher reliability due to new anti-noise features. High resistance is guaranteed by IP67 certification.
Key features:
- Outdoor PtP unit
- Bandwidth: 5.15 to 6.14 GHz
- Possibility to connect an N5-X twist one compatible antenna
- Low latency of 1 ms
- Certificiaton IP67
Package Contents:
- Device
- QuickStart
Свали
Технически параметри
LAN ports
Sensitivity [dBm]
-93
Maximum modulation
1024 QAM
Power over Ethernet
24V DC
Protection class
IP67
F/B ratio [dB]
21
Operating mode
Client
Wireless frequency
5 GHz, 6 GHz
WiFi standards
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 6GHz [Mb/s]
2402
Tx power 5GHz [dBm]
24
Tx power 6GHz [dBm]
24
5GHz MIMO
2 x 2
Azimuth beam width (-6dB) [°]
60
Elevation beam width (-6dB) [°]
60
6GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
1
RF connectors
Twist-on port (Mimosa)
Purpose
Outdoor
Antenna gain [dBi]
8
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
20
Buttons
Reset
Operating temperature [°C]
-40 up to 55
Weight [g]
700
Depth [mm]
67
Width [mm]
113
Height [mm]
178
IPv6 support
Yes
Default IP address
192.168.1.20
Default login and password
Is set by the user at the first startup
