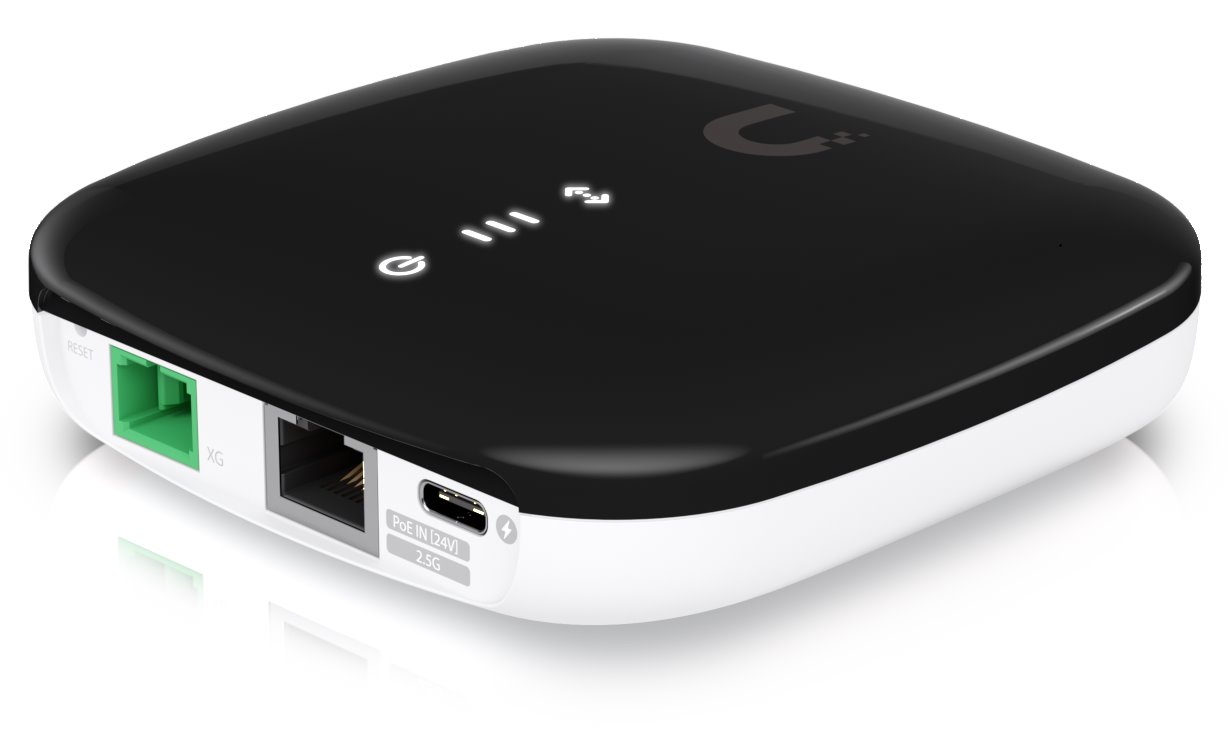

Ubiquiti UISP-FIBER-XG, UISP Fiber XG-PON ONU
Вашата цена с ДДС (20.0%)
220.63 лв
❌ Артикулът не е наличен. Няма възможност за поръчка.
Без потвърдена дата на доставка
Производител
Продуктов номер
UISP-FIBER-XG
Продуктов Код
RL026.327
Гаранция
24 месеца
Имате избор от 2 варианта
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукUISP-FIBER-XG is a CPE ONU unit for XGS/XG-PON solutions. The device itself serves to convert optical GPON to metallic LAN and only supports Bridge mode, not Router mode. For connection to the XGS/XG-PON network, it uses 1x SC connector with APC polishing and a maximum speed of 9.95 Gb/s downstream and 2.44 Gb/s upstream. The transmitting power ranges from 2 to 7 dBm and the reception sensitivity from -9 to -27 dBm. For LAN connection there is 2.5G LAN port with 24V DC POE-IN support. Unit also can be powered by a 5V/3A USB-C adapter.
Package Contents
- Unit
- 5V/3A USB-C power adapter
- Holder and mounting kit
Свали
Технически параметри
LAN ports
Power over Ethernet
24V DC
Tx power [dBm]
2 up to 7
Optical Connectors
(1) SC
Transmission speed
9,95 / 2,44 Gbps
Wavelength - Tx/Rx [nm]
1270 / 1577
Distance [km]
20
Transfer type
XG-PON
Polishing type
APC
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
Receiver sensitivity [dBm]
-9 up to -27
Max. power consumption [W]
6
Power via connector/terminal
5V DC
Buttons
Reset
Operating temperature [°C]
-15 up to 45
Width [mm]
100
Height [mm]
27
Depth [mm]
100
