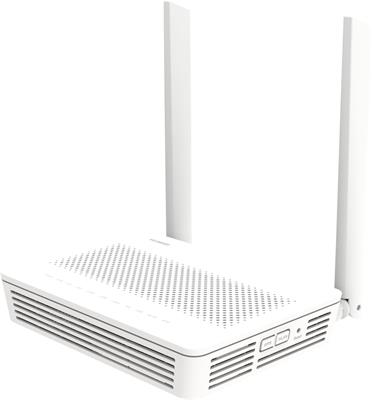

Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5

Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Вашата цена с ДДС (20.0%)
88.58 лв
✅ В наличност 90+ Бр.
Delivery Планирана Дата Доставка на Куриер до Вас 01-01-2025
Производител
Продуктов номер
EG8145V5
Продуктов Код
RL027.697
Гаранция
24 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

The EchoLife EG8145V5 is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users. The EG8145V5 supports 802.11ac dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services. These features make the EG8145V5 a perfect option for broadband access.

GPON ONT Gateway with WiFi 5 support (802.11a/b/g/n/ac) with max. modulation speed 300/867Mbps. It is equipped with 4x GLAN ports. 1x USB 2.0 (FTP, SAMBA, DLNA support) and 1x POTS port for analog phone line. The GPON port for connecting an optical cable with a SC/APC connector is ingeniously hidden on the bottom of the device.

Device comes from official Czech distribution.

Plug-and-Play

Configurations are automatically delivered by the network management system so on-site commissioning is not required.

Package contents

  • Device
  • DC Power adapter

Свали

https://download.discomp.cz/Huawei/Datasheets/EchoLife_EG8145V5_Datasheet.pdf
Свали Datasheet
https://download.discomp.cz/Huawei/Manuals/EchoLife_EG8145V5_QSG.pdf
Свали QSG

Технически параметри

LAN ports
Ethernet speed [Mb/s]
10/100/1000
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
28
Tx power 5GHz [dBm]
29
Optical Connectors
(1) SC
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Fixed
Fixed antennas
2
Transmission speed
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]
1310 / 1490
Antenna gain [dBi]
5
Transfer type
GPON
Polishing type
APC
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Gigabit LAN
Yes
Max. LAN ports speed
1G
Max. power consumption [W]
18
Power via connector/terminal
11 .. 14V DC
Buttons
Reset, WPS, power, WiFi
Operating temperature [°C]
0 up to 40
Weight [g]
250
Width [mm]
173
Height [mm]
30
Depth [mm]
120
Default IP address
192.168.18.1
Default login and password
Epadmin / adminEp
