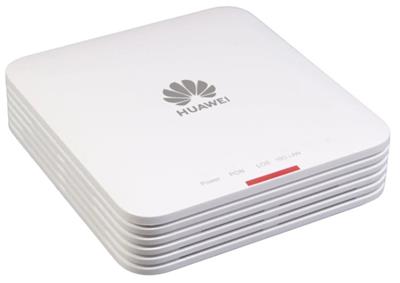

Huawei OptiXstar EN8010Ts-20, XGS-PON ONT bridge
Вашата цена с ДДС (20.0%)
147.68 лв
✅ В наличност 30+ Бр.
Планирана Дата Доставка на Куриер до Вас 01-01-2025
Имате избор от 2 варианта
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукThe Huawei OptiXstar EN8010Ts-20 is an XGS-PON bridging-type ONT in the Huawei all-optical access solution. It uses the XGS-PON technology to implement ultra-broadband access for users.
Auto Port Speeds
Auto-adaptive 10000Mbit/s, 5000Mbit/s, 2500Mbit/s, 1000Mbit/s, 100Mbit/s
Multicast
- IGMP v2/v3 & MLD v1/v2 snooping
- Fast leave
- VLAN tag translation, transparent transmission, and removal for downstream multicast packets
- IGM/MLD protocol packet rate limitation
Smart O&M
- Variable-length OMCI messages
- Rogue ONT detection and self-regulation
- PPPoE/DHCP simulation testing
Package contents
- Device
- DC Power Adapter 12V / 1A
Свали
Технически параметри
LAN ports
Optical Connectors
(1) SC
Transmission speed
9,95 / 9,95 Gbps
Wavelength - Tx/Rx [nm]
1260 up to 1280 / 1575 up to 1580
Transfer type
XGS-PON
Polishing type
APC
LAN ports
1
LAN speed
(1) 100M/1G/2.5G/5G/10G
Max. LAN ports speed
10G
Receiver sensitivity [dBm]
-28
Max. power consumption [W]
6
Power via connector/terminal
12V / 1A
Buttons
Reset, power
Operating temperature [°C]
0 up to 40
Width [mm]
105
Height [mm]
32
Depth [mm]
110
