MikroTik RouterBOARD RB5009UPr+S+OUT

Описание на продукт

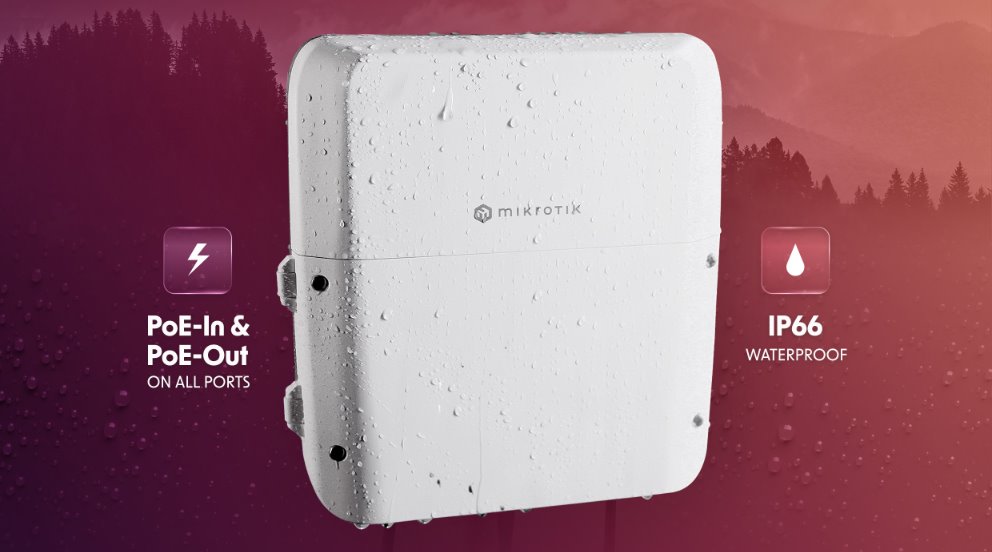

RB5009UPr+S+OUT is a high performance PoE router that comes with passive cooling, IP66 outdoor chassis and high performance (60 - 90% higher than RB4011) which is due to the 64-bit ARM architecture of the processor with a clock speed of 1400 MHz, 1GB RAM type DDR4 and 1GB NAND storage. The router has 7x Gigabit LAN, 1x 2.5Gbit LAN with PoE IN and PoE OUT (802.3af/at) on all eight Ethernet ports with a total PoE budget of 130 W, DC terminal block (24 .. 57V DC), 1× SFP+ slot and 1× USB 3.0. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.

Key Features

• Powerful device with PoE and ARM 64bit architecture
• CPU 1400 MHz, 4 cores, 1 GB RAM, 1 GB NAND
• 2 types of power supply - DC terminal block, PoE (24 to 57 V DC)
• PoE IN and PoE out on all eight Ethernet ports! (PoE OUT works only if powered by DC terminal block)
• Passive cooling without fans
• Interfaces: (7) Gigabit, (1) 2.5Gigabit, (1) SFP/SFP+, (1) USB 3.0
• RouterOS L5 version 7 pre-installed
• Outdoor chassis with IP66 protection

Package contents

• Device
• Screws, dowels, metal clips
• (2) metal zip ties

Свали

http://www.mikrotik.com/download

Firmware (RouterOS / SwOS)

https://download.discomp.cz/MikroTik/Datasheets/RB5009UPr_S_OUT.pdf

Datasheet
