Ubiquiti UniFi switch USW-Pro-Max-16-PoE

Ubiquiti UniFi switch USW-Pro-Max-16-PoE
Вашата цена с ДДС (20.0%)
805.00 лв
Поръчан за склад
Delivery Планирана Дата Доставка на Куриер до Вас 09-10-2024
Ubiquiti
Производител
Продуктов номер
USW-Pro-Max-16-PoE
Продуктов Код
RL027.116
Гаранция
24 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Ubiquiti Pro Max 16-PoE is a new L3 switch that offers 4x 2.5 Gbps ports with PoE++ up to 60W and 12x 1 Gbps ports with PoE+. The total PoE budget is 180 W. For optical interface connection, there are 2 SFP+ ports achieving speeds up to 10 Gb/s. The switch is powered by a DC adapter 54V DC 210W.

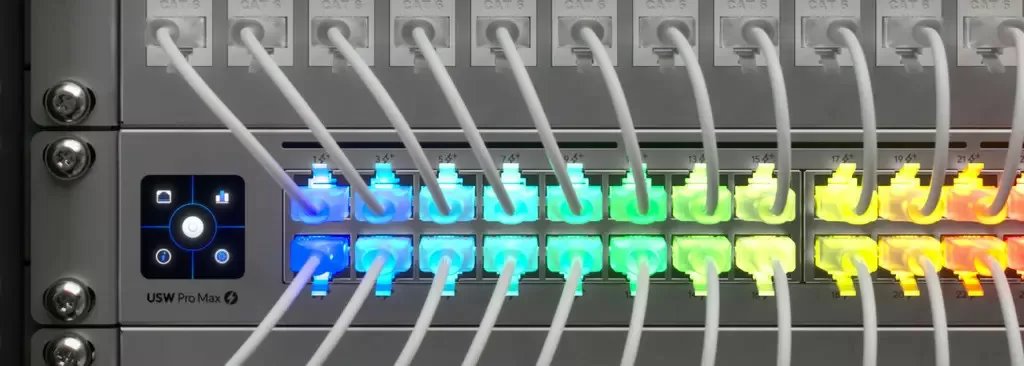

Etherlighting Technology

The switch supports Etherlighting technology, which allows color indication of port location, link speed, user defined device types, PoE status or individual VLANs.

USW-Pro-Max-16-PoE *To ensure proper functionality, it is recommended to use Ubiquiti UniFi Etherlighting Patch cables

Managed via UniFi Controller

The switch does not have web management but is centrally managed via UniFi Controller with support for the mobile app UniFi and offers an extensive set of advanced switching protocols and L2 features, including operational mode (switching, mirroring, or aggregation) per port. UniFi Network Controller and mobile app enable administrators to configure and monitor virtually all switch features in a graphical user interface from anywhere.

Package Contents

  • Device
  • DC Power Adapter
  • Mnount kit

Свали

https://dl.ui.com/qig/usw-pro-max-16-poe/#index
Свали Quick Guide
https://techspecs.ui.com/unifi/switching/usw-pro-max-16-poe#datasheet
Свали Datasheet

Технически параметри

LAN ports
Design
Rackmount, On the wall
Switchning capacity [Gbps]
84
Packet forwarding rate [Mpps]
62
Management
UniFi Network
Features
L3, VLAN, DHCP snooping
Power type
DC connector
Fans
Without fan
LAN ports
16
LAN speed
(12) 10/100/1000Mbps + (4) 10/100/2500Mbps
Max. LAN ports speed
2.5G
PoE type
PoE-Out (only)
SFP+ cages
2 (1G/10G support)
Optical interfaces
(2) 1G/10Gbps
PoE-Out standards
802.3af, 802.3at, 802.3at - ultra PoE (60W)
PoE Out ports
16
PoE budget [W]
180
Max. power consumption [W]
210
Chassis design
Metal
Power via connector/terminal
54V DC
Buttons
Reset
Operating temperature [°C]
-5 up to 40
Width [mm]
325
Height [mm]
44
Depth [mm]
160
Default IP address
Dynamic from DHCP
Other features
Touchscreen
