RF elements UltraDish UD29WB Directional Parabolic Dish Antenna with TwistPort, 5/6GHz, 29 dBi
Вашата цена с ДДС (20.0%)
422.82 лв
✅ В наличност 40+ Бр.
Планирана Дата Доставка на Куриер до Вас 04-12-2024
15.63 лв без ДДС
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукUltraDish™ 29 WB is designed for CPE application in 5 & 6 GHz bands with increased gain requirements.
Key features
- Wideband performance with 2,225 MHz wideband covering 5 & 6 GHz unlicensed spectrum bands
- 29 dBi of nominal gain
- Excellent VSWR
- TwistPort™ waveguide connector. Connect directly to waveguide or use TPA with coaxial connectors
Industry leading design with innovative materials
- Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments
- All aluminum construction for low weight
- UBR mounting bracket with dual pole clamp for better grip
- Stainless steel hardware with anti-seize coating
- Industry leading ergonomics with integrated handle for easy deployment
- Optional side strut for increased wind resistance
Свали
Технически параметри
LAN ports
F/B ratio [dB]
40
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
MIMO, SISO
2 x 2
Polarization
VH
Wireless frequency
5 GHz, 6 GHz
Elevation beam width (-6dB) [°]
7,6
Azimuth beam width (-6dB) [°]
7,6
Antenna type
Directional
Purpose
Outdoor
Antenna gain [dBi]
29
Material
Aluminum, Stainless steel, UV stabilized ABS plastic
Operating temperature [°C]
-35 up to 60
Weight [kg]
4,2

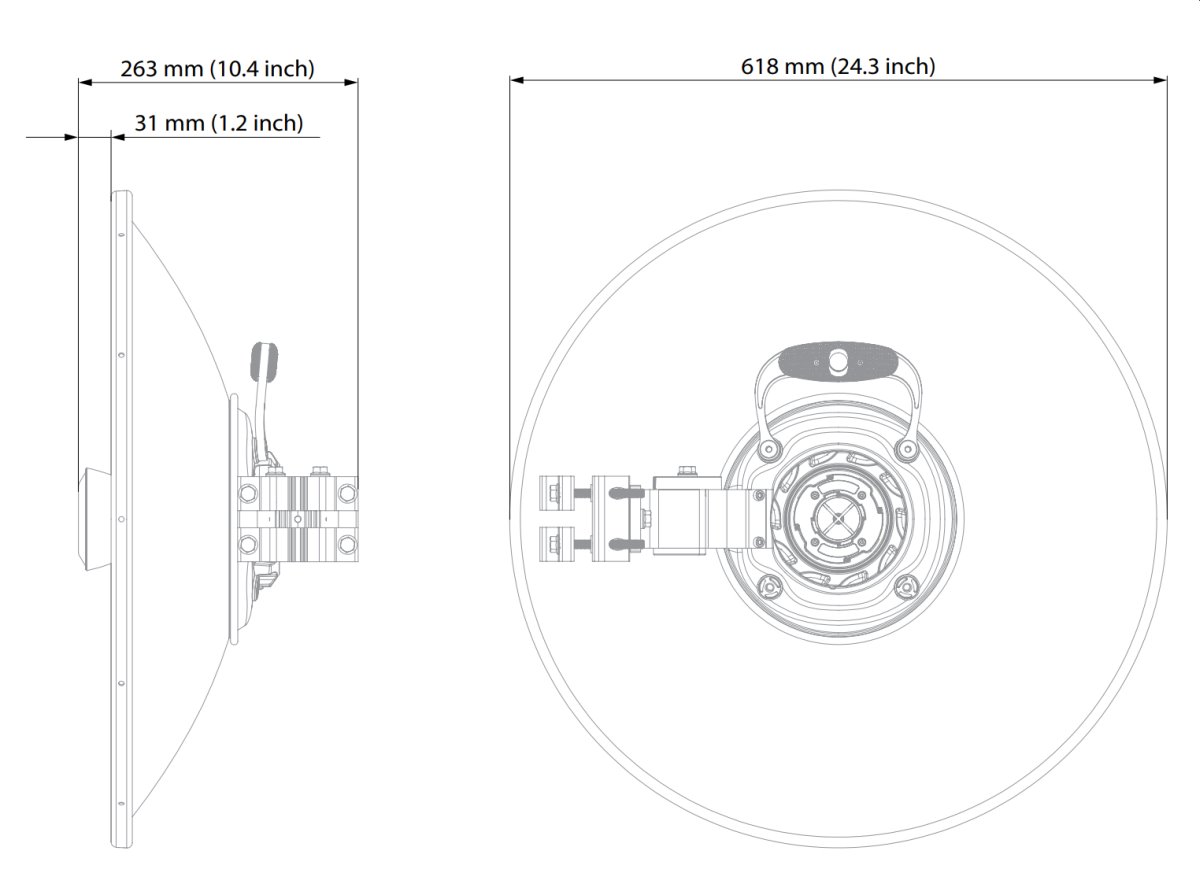

Width [mm]
618
Height [mm]
618
Depth [mm]
263
