RF elements Symmetrical Horn Sector antenna with TwistPort, 5/6GHz, 13 dBi, 60°
Вашата цена с ДДС (20.0%)
458.12 лв
Поръчан за склад
Без потвърдена дата на доставка
15.84 лв без ДДС
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тук60° Symmetrical Horn Antennas have a symmetrical beam pattern with depressed sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense co-location deployments.
Key features
- Wideband performance covering 5 & 6 GHz unlicensed spectrum bands
- Industry-changing TwistPort™ waveguide connector. Connect directly to waveguide ported radios or use TP Adaptor to common coaxial connectors.
New industrial design
- Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments
- Extremely lightweigth for low tower load
- Compact for low wind loading
- UBR mounting bracket with stainless steel hardware with anti-seize coating
- Industry leading ergonomics with integrated handle for easy deployment
Свали
Технически параметри
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
F/B ratio [dB]
28
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
Wireless frequency
5 GHz, 6 GHz
Elevation beam width (-6dB) [°]
60
Azimuth beam width (-6dB) [°]
60
Antenna type
Sector
Purpose
Outdoor
Antenna gain [dBi]
13
Material
Aluminum, UV stabilized ABS plastic, Stainless steel
Operating temperature [°C]
-35 up to 60
Weight [kg]
1,7

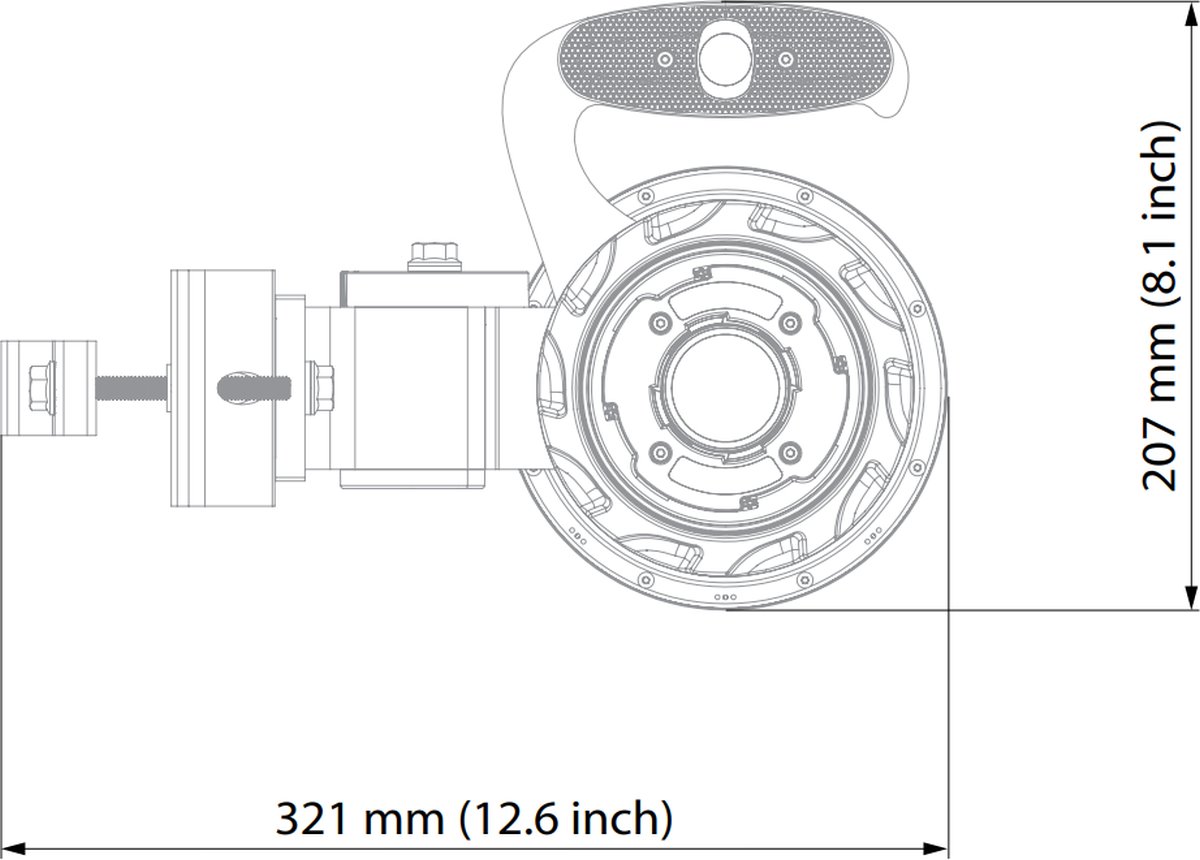

Width [mm]
321
Height [mm]
207
Depth [mm]
150
