MikroTik ATL 5G R16

MikroTik ATL 5G R16
Вашата цена с ДДС (20.0%)
610.67 лв
Поръчан за склад
Delivery Планирана Дата Доставка на Куриер до Вас 16-07-2025
MikroTik
Производител
Продуктов номер
ATLGM&RG520F-EU
Продуктов Код
RL029.565
Гаранция
24 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

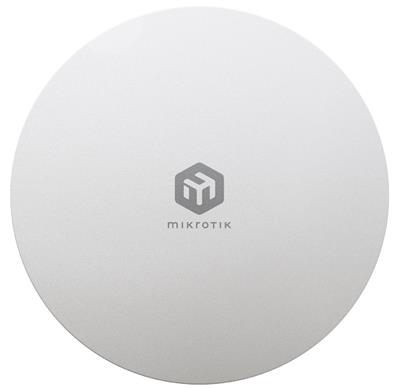

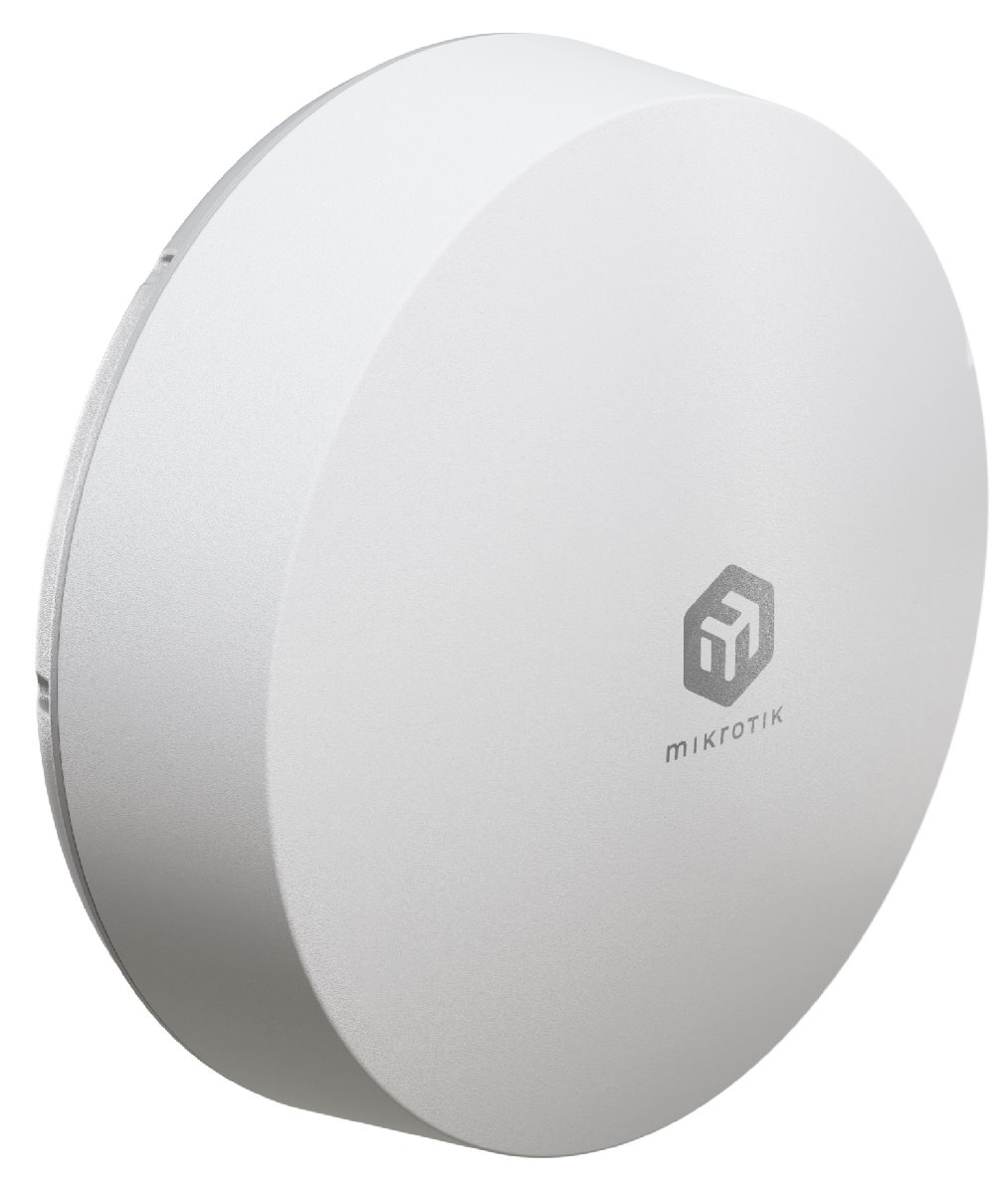

The ATL 5G R16 by MikroTik is a high-performance outdoor device with support for 5G and LTE Cat 20, designed to deliver maximum performance even in demanding conditions. Thanks to its high-gain 16 dBi antenna and 4x4 MIMO technology, the ATL is an ideal solution for connectivity even in the most remote locations. The device features a modern dual-core ARM processor, 512 MB of RAM, and RouterOS v7 for full network management control. It includes a Gigabit Ethernet port with PoE-in support (12–56 V) and 802.3af/at, simplifying installation and minimizing cabling. The maximum power consumption is only 10 W.

Dual SIM with eSIM support

The ATL 5G R16 features a dual SIM system – use either a standard microSIM or the built-in eSIM. The eSIM can be easily activated via MikroTik Connectivity, enabling instant access to mobile data without waiting for a physical SIM card or operator activation.

With its IP66-rated enclosure, the device is protected against harsh weather conditions, and its aerodynamic design prevents the accumulation of snow and water – making it an ideal choice for challenging outdoor environments.

Package contents

  • ATL 5G R16 device
  • PoE injector
  • 24V / 0.8A power adapter
  • Metal mounting clamp

Свали

http://www.mikrotik.com/download
Свали Firmware (RouterOS / SwOS)
https://download.discomp.cz/mikrotik/datasheets/ATL 5G R16.pdf
Свали Datasheet

Технически параметри

LAN ports
Design
Outdoor
M.2 slots
1
Power over Ethernet
802.3af, 802.3at, 12 .. 56V DC
Protection class
IP66
Operating mode
Cellular router
Wireless frequency
5G (GSM)
Type of antenna
Built-in
Antenna gain [dBi]
16
Integrated 4G/LTE radio part
Yes
Power type
PoE
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz
Operating system
RouterOS v7 - L3
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
10
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Depth [mm]
179
Width [mm]
311
Height [mm]
311
CPU
88F3720
CPU frequency [MHz]
800
CPU cores
2
SIM slots quantity
1
SIM slot
Yes
IPv6 support
Yes
Internal storage [MB]
32
Default IP address
192.168.88.2
RAM [MB]
512
Default login and password
admin / (preset password, see label/engraving)
