Huawei eKitOptiX F600D-30-4G1V, GPON ONU bridge, WiFi 6

Huawei eKitOptiX F600D-30-4G1V, GPON ONU bridge, WiFi 6
Вашата цена с ДДС (20.0%)
165.68 лв
❌ Артикулът не е наличен. Няма възможност за поръчка.
Delivery Без потвърдена дата на доставка
Производител
Продуктов номер
F600D-30-4G1V
Продуктов Код
RL029.699
Гаранция
6 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

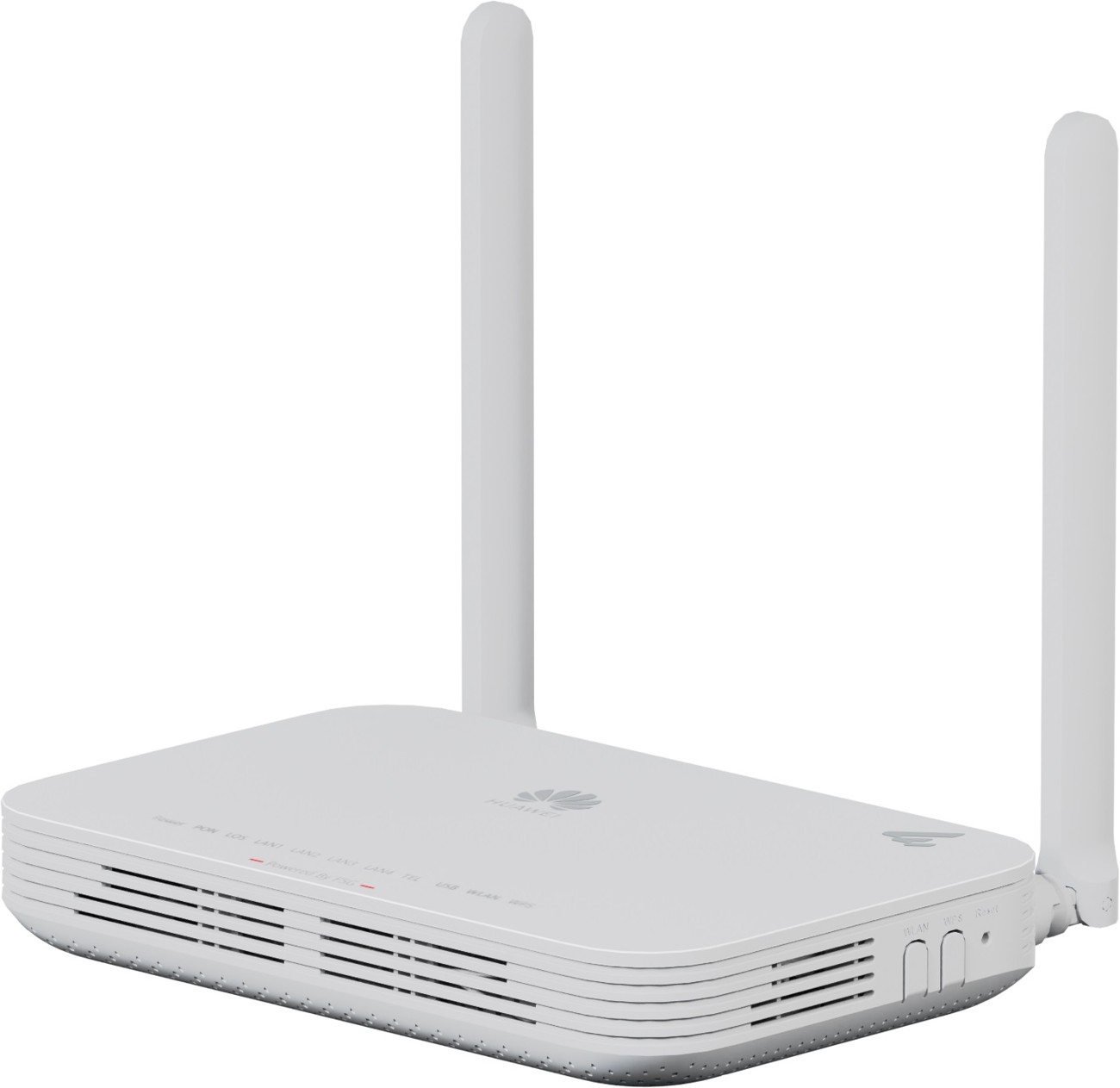

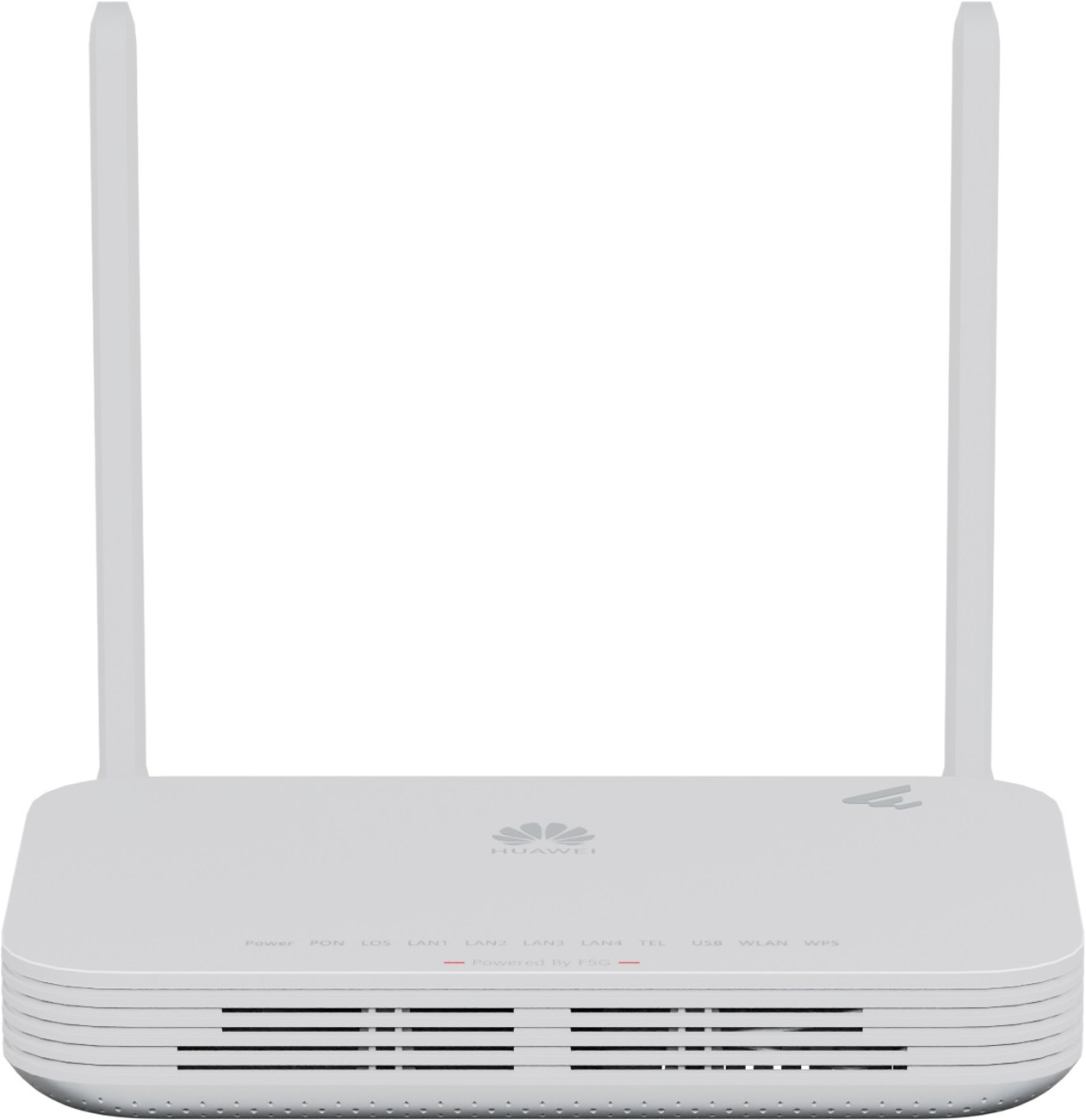

The eKitOptiX F600D-30-4G1V is a intelligent bridge-type Optical Network Unit (ONU) in Huawei MiniFTTO solution. By using the GPON technology, ultra-broadband access is provided for users. The F600D-30-4G1V supports 802.11ax dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services. These features make the F600D-30-4G1V a perfect option for broadband access.

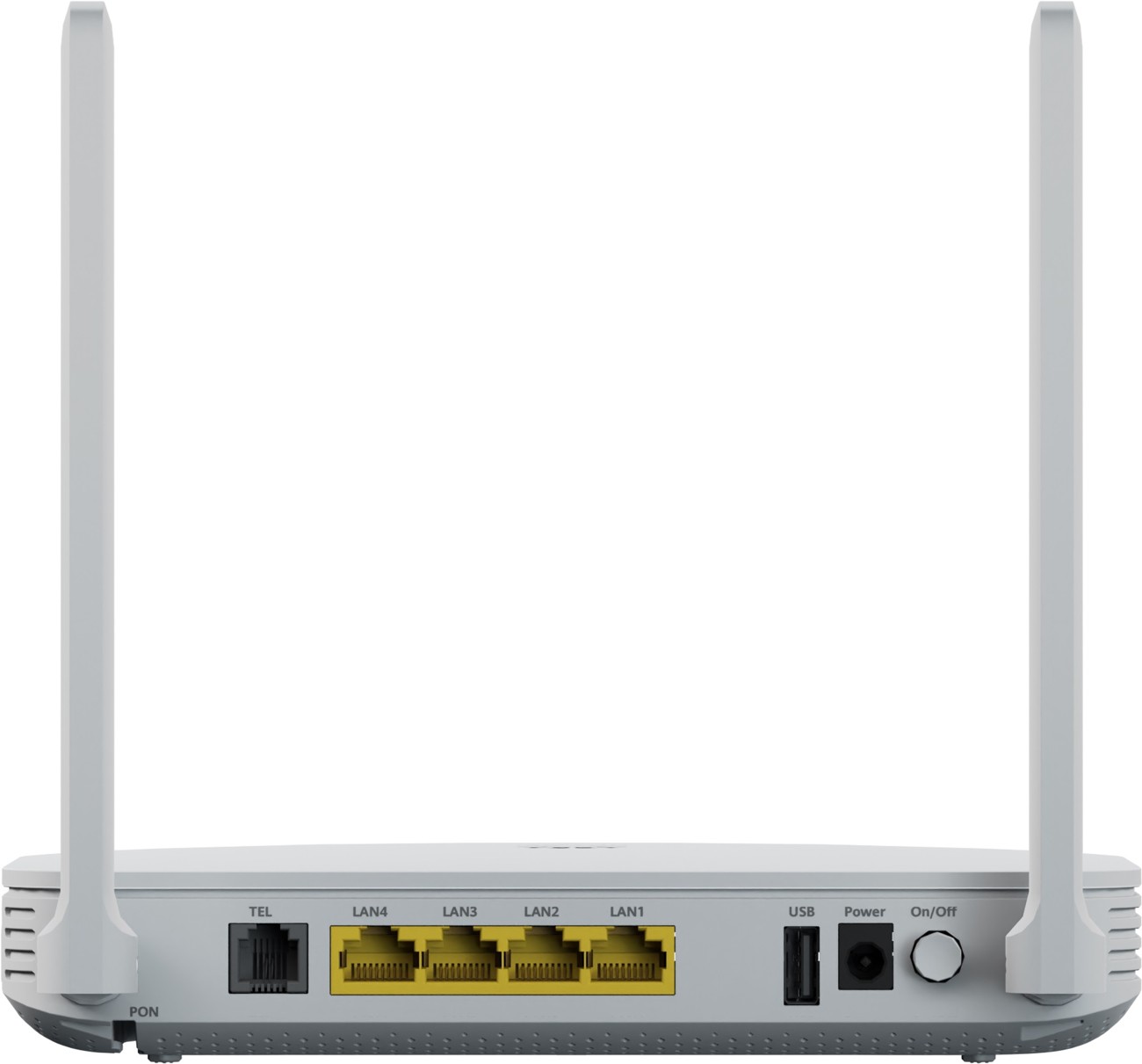

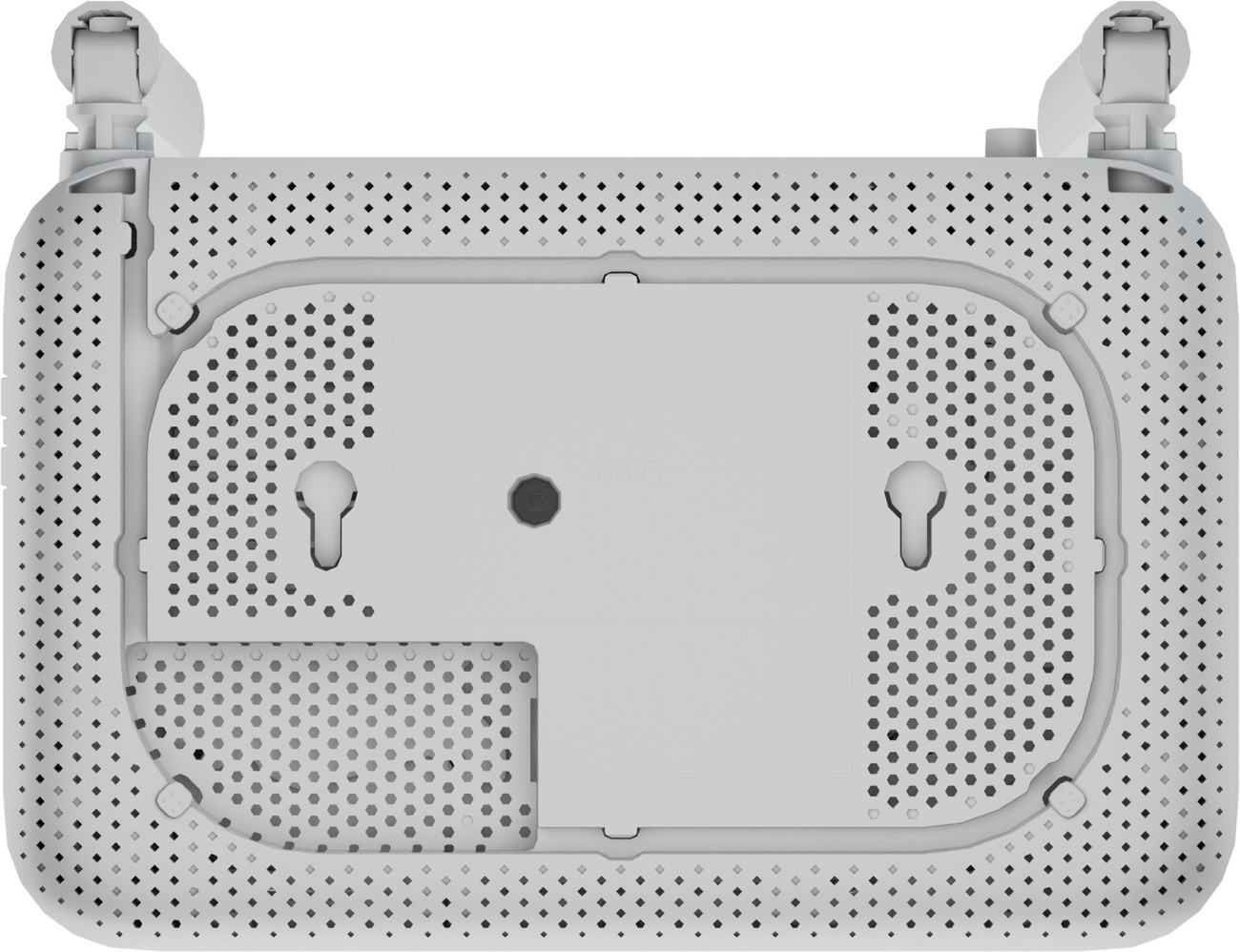

GPON ONU bridge with WiFi 6 support (802.11a/b/g/n/ac/ax) with max. modulation speed 574/2402Mbps. It is equipped with 4x GLAN ports. 1x USB 2.0 (FTP, SAMBA, DLNA support) and 1x POTS port for phone line. The GPON port for connecting an optical cable with a SC/UPC connector is ingeniously hidden on the bottom of the device.

Device comes from official Czech distribution.

Plug-and-Play

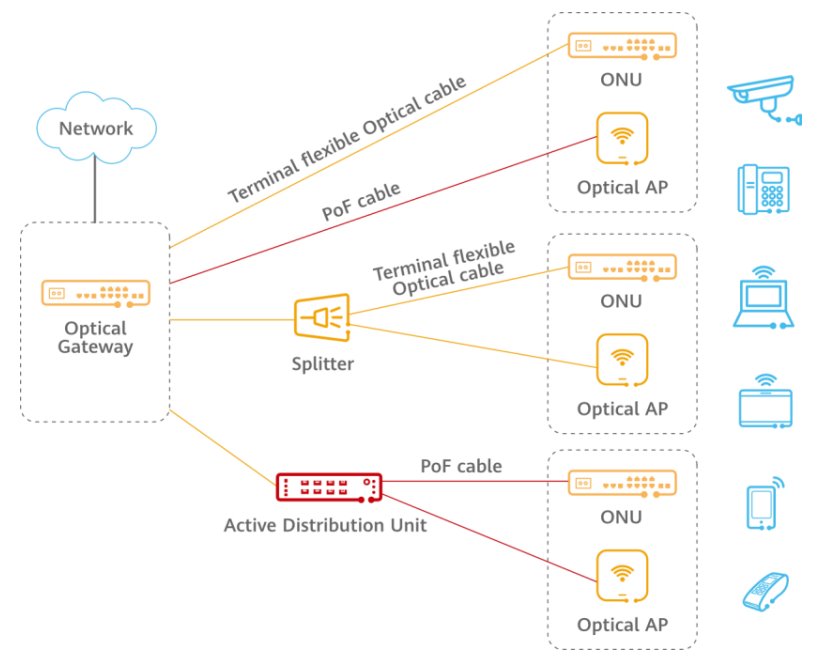

Configurations are automatically delivered by the MiniFTTO Gateway, so on-site commissioning is not required.

Package contents

  • Device
  • DC Power adapter

Свали

https://download.discomp.cz/Huawei/Datasheets/F600D-30-4G1V_Datasheet.pdf
Свали Datasheet
https://download.discomp.cz/Huawei/Manuals/F600D-30-4G1V_Quick_Start.pdf
Свали Quick Start Guide

Технически параметри

LAN ports
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
574
Security
WPA3 AES
Optical Connectors
(1) SC
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Fixed
Fixed antennas
2
Transmission speed
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]
1490 / 1310
Antenna gain [dBi]
5
Transfer type
GPON
Polishing type
UPC
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Max. LAN ports speed
1G
PON SFP cages
1
Receiver sensitivity [dBm]
-27
Max. power consumption [W]
18
Power via connector/terminal
12V / 1,5A
Buttons

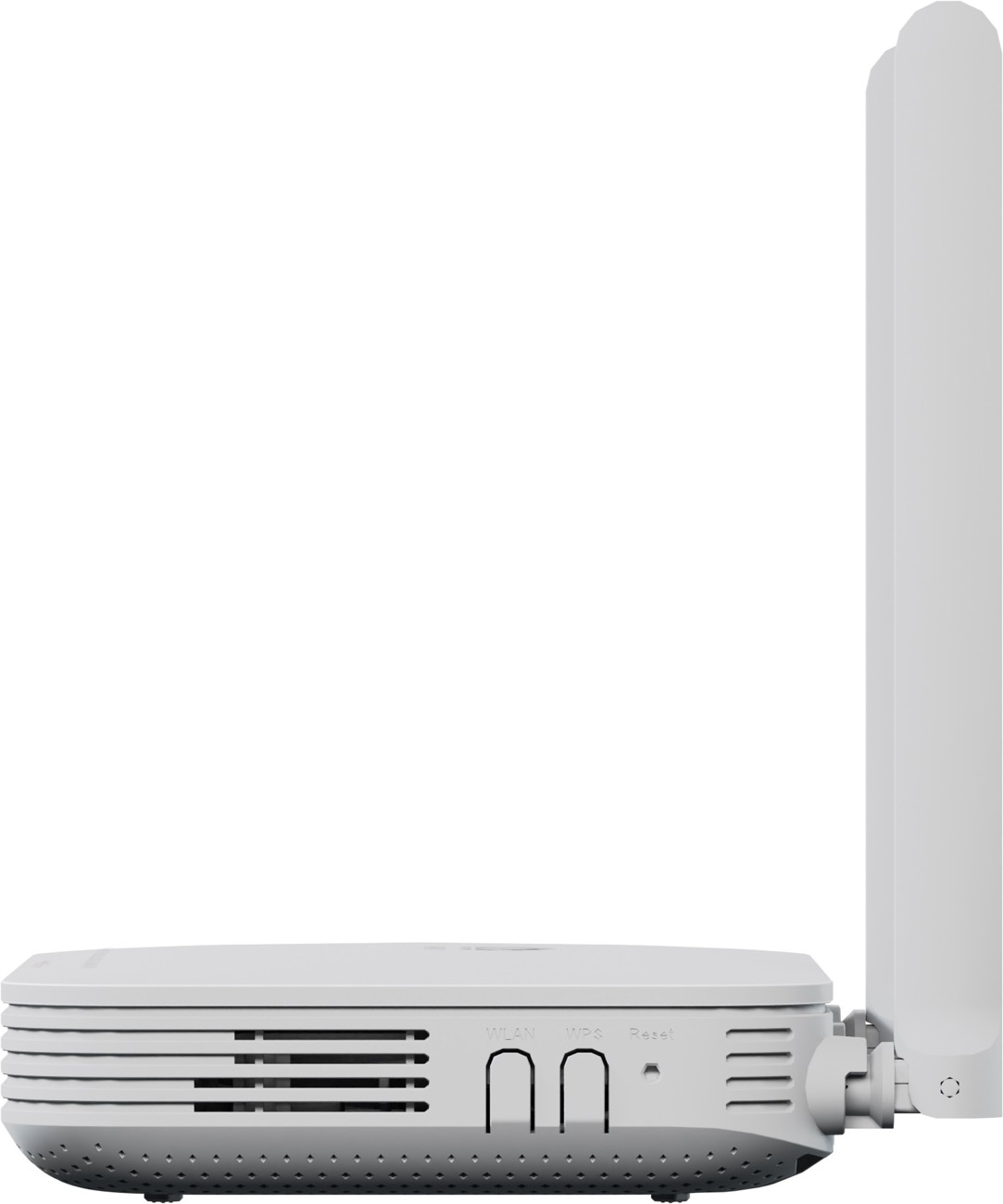

Reset, WPS, power, WiFi
Width [mm]
195
Height [mm]
35
Depth [mm]
125
