Power jack

Yes

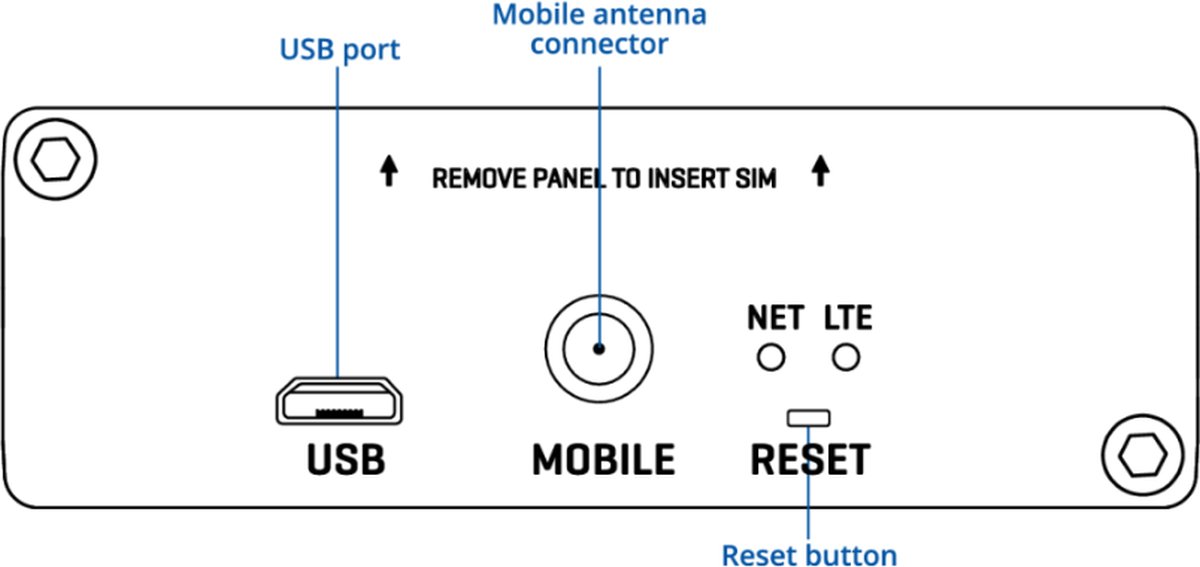

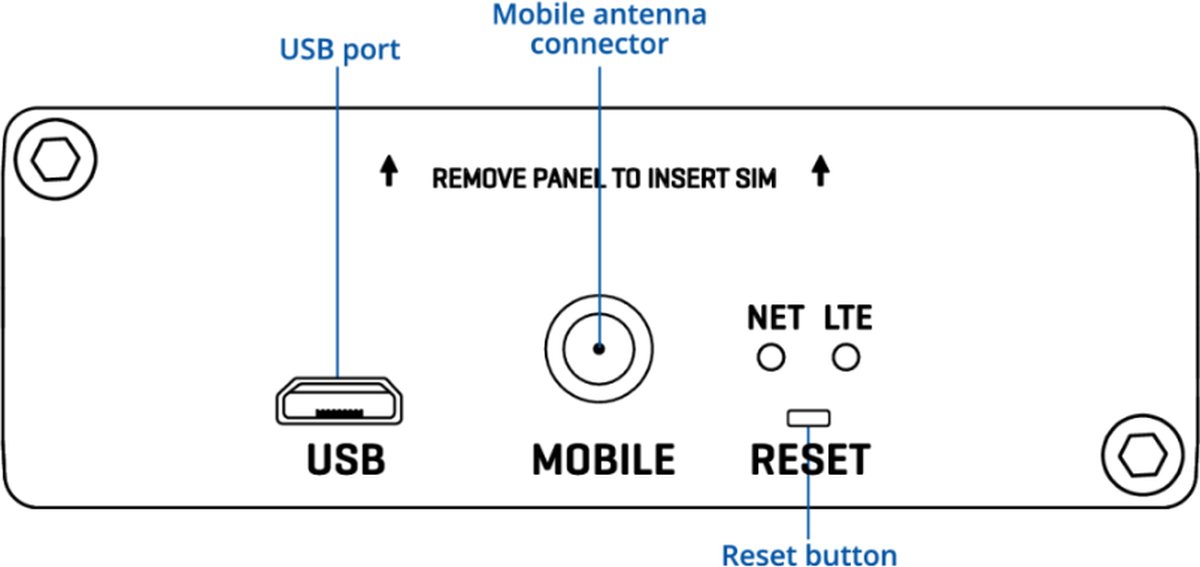

Interface

USB 2.0

Protection class

IP30

Wireless frequency

LTE, 2G (GSM), 3G (GSM), 4G (GSM)

RF connectors

(1) SMA female

Material

Aluminum

Power type

4-pin automotive

4G/LTE bands support

(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (28) 700 MHz

LED indication

Yes

Max. power consumption [W]

5

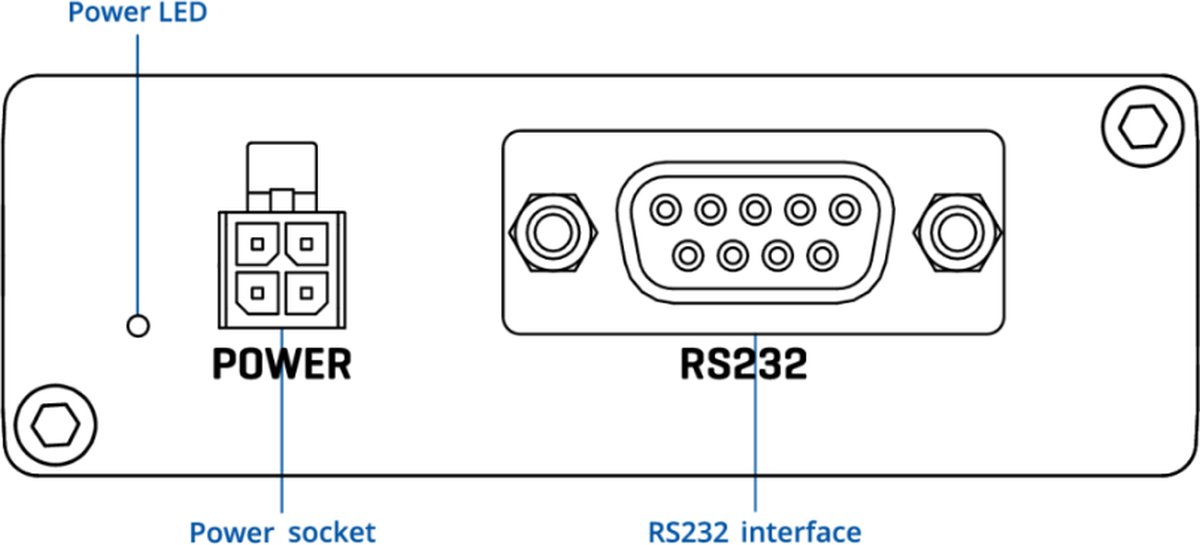

Serial port

RS-232

Power via connector/terminal

9 .. 30V DC

Buttons

Reset

Operating temperature [°C]

-40 up to 75

Weight [g]

135

Width [mm]

76

Height [mm]

25

Depth [mm]

75

SIM slot

Yes

SIM slots quantity

1
