WirelessAntennasSector antennas5GHz

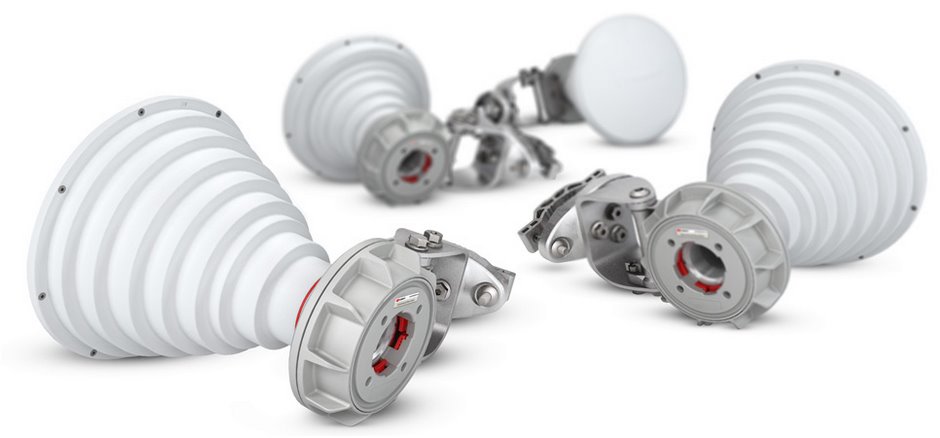

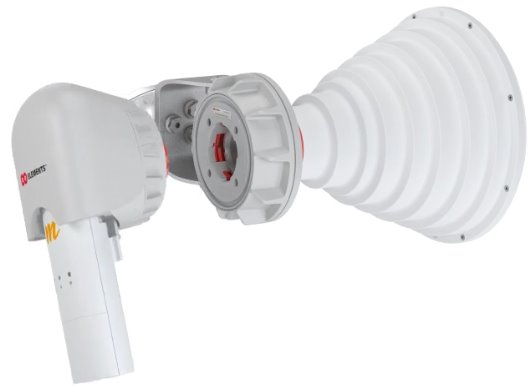

RF elements Symmetrical Horn Sector antenna with TwistPort, 5GHz, 18dBi, 30°, Gen2

Вашата цена с ДДС (20.0%)

179.21 лв

✅ В наличност 90+ Бр.

Планирана Дата Доставка на Куриер до Вас 08-05-2024

Добави в кошница

Производител

RF elements

Продуктов номер

HG3-TP-S30

Продуктов Код

RL005.403

Гаранция

24 месеца

Имате въпрос?

Имате избор от 7 варианта

HG3-TP-S90

148.85 лв без ДДС

HG3-TP-S80

174.22 лв без ДДС

HG3-TP-S70

174.22 лв без ДДС

HG3-TP-S60

148.85 лв без ДДС

HG3-TP-S50

174.22 лв без ДДС

HG3-TP-S40

174.22 лв без ДДС

HG3-TP-S30

149.34 лв без ДДС

• Свързани продукти

RF elements TPA-R5ac TwistPort adaptor for Rocket AC LiteTPA-R5AC

29.87 лв без ДДС

RF elements TPA-RM5 TwistPort adaptor for Rocket M5TPA-RM5

29.87 лв без ДДС

RF elements TP-ADAP-e2K TwistPort adaptor for ePMP2000 APTP-ADAP-e2K

67.29 лв без ДДС

RF elements TP-ADAP-C5c TwistPort adaptor for Mimosa C5cTP-ADAP-C5c

24.90 лв без ДДС

RF elements TP-ADAP-IS TwistPort adaptor for PrismStation, IsoStationTP-ADAP-IS

19.93 лв без ДДС

RF elements TPA-RBC TwistPort aluminium adaptor for RouterBOARDTPA-RBC

44.79 лв без ДДС

RF elements TPA-PAF TwistPort adaptor for Rocket Prism 5AC, airFiber 5X and LTU-RocketTPA-PAF

92.19 лв без ДДС

RF elements TPA-RBP TwistPort adaptor for RouterBOARDTPA-RBP

29.87 лв без ДДС

RF elements TPA-SMA TwistPort adaptor with 2x RSMA connectorsTPA-SMA

24.90 лв без ДДС

Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mmSL1-100-035-020-042

15.71 лв без ДДС

RF elements TPA-AMU TwistPort adaptor for Mimosa B5x and C5xTPA-AMU

24.90 лв без ДДС

RF elements TPA-A5x TwistPort adaptor for Mimosa A5xTPA-A5x

24.90 лв без ДДС

RF elements Twin Horn BracketTHB

86.65 лв без ДДС

•
• Свали
• Видео

Свали

https://download.discomp.cz/rfelements/Datasheets/HG3-TP-S30-Datasheet.pdf

Datasheet

Технически параметри

LAN ports

F/B ratio [dB]

37

Designed for mast diameter [mm]

30 up to 90

Wind load [km/h]

160

Wireless frequency

5 GHz

Elevation beam width (-6dB) [°]

30

Azimuth beam width (-6dB) [°]

30

Antenna type

Sector

RF connectors

TwistPort

Purpose

Outdoor

Antenna gain [dBi]

18

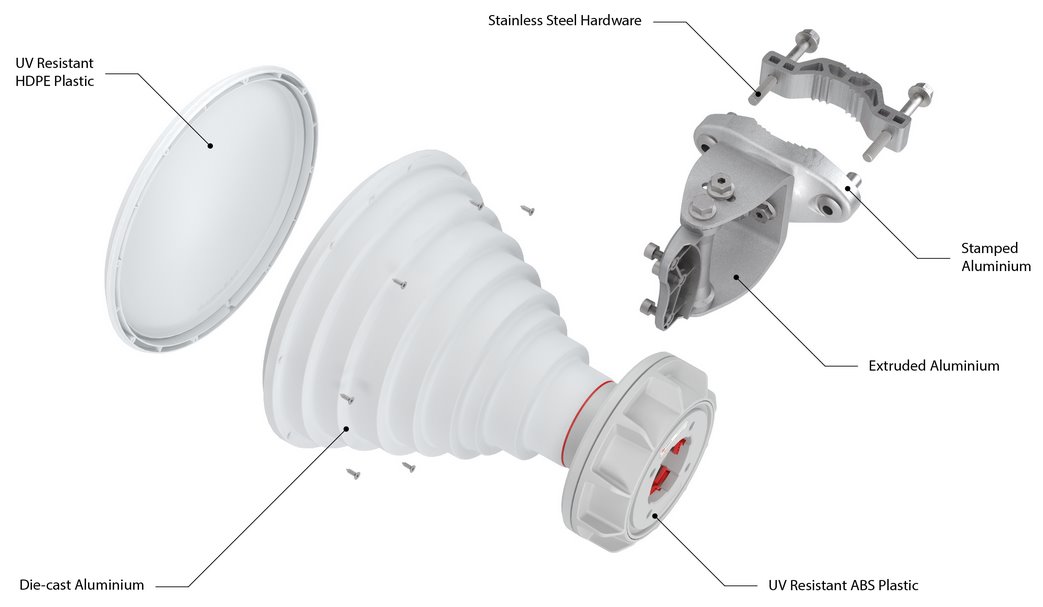

Material

Aluminum, UV stabilized ABS plastic, Stainless steel, Polycarbonate, Polypropylene

Weight [kg]

1,9

Width [mm]

345

Height [mm]

217

Depth [mm]

284
