Mimosa C5c, PTP and PtMP unit, 2x RSMA female

Mimosa C5c, PTP and PtMP unit, 2x RSMA femaleBestseller
Your price incl. VAT (20.0%)
345.70 BGN
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 13-11-2024
Mimosa
Manufacturer
Product number
100-00018(C5c)
Product Code
RL010.875
Warranty
24 months

Product description

C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 500+ Mbps of TCP throughput.

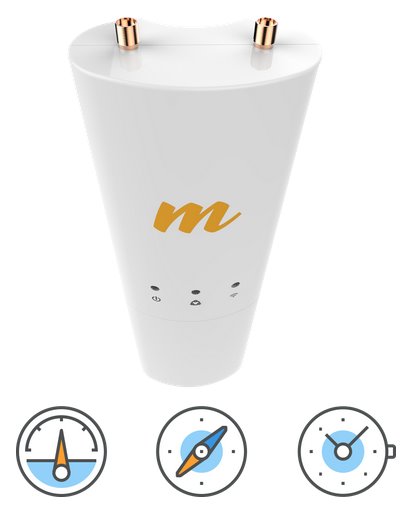

Mimosa C5c

Package contains

  • Device
  • Metal ring
  • Self-vulcanizing tape

Download

https://download.discomp.cz/mimosa/datasheet/C5c.pdf
Download Datasheet
https://download.discomp.cz/mimosa/overview/C5c_Product_Overview.pdf
Download Product overview
https://mimosa.co/firmware
Download Firmware

Technical parameters

LAN ports
Power over Ethernet
24 .. 56V DC
Sensitivity [dBm]
-93
Operating mode
Bridge, Client
Wireless frequency
5 GHz
WiFi standards
Mimosa SRS, WiFi Interop
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
27
Security
WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) RSMA female
Purpose
Outdoor
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
12,9
Operating temperature [°C]
-40 up to 55
Weight [g]
295
Width [mm]
65
Height [mm]
188
Depth [mm]
44
Default IP address
192.168.1.20
Default login and password
Is set by the user at the first startup
