RF elements TP-ADAP-C5c TwistPort adaptor for Mimosa C5c

RF elements TP-ADAP-C5c TwistPort adaptor for Mimosa C5c
Your price incl. VAT (20.0%)
30.70 BGN
✅ In Stock 60+ Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
RF elements
Manufacturer
Product number
TP-ADAP-C5c
Product Code
RL004.478
Warranty
24 months

Product description

TwistPort Adaptor for MIMOSA C5c Integrated Radios allows easy integration with any RF-Elements antenna with TwistPort connector. TwistPort Adaptor uses special coaxial connectors without threads, so the integration of MIMOSA C5c Radios is revolutionary easy. Simply slide the radio into the Adaptor until you hear “click”. To unlock, press the button and slide the radio out.

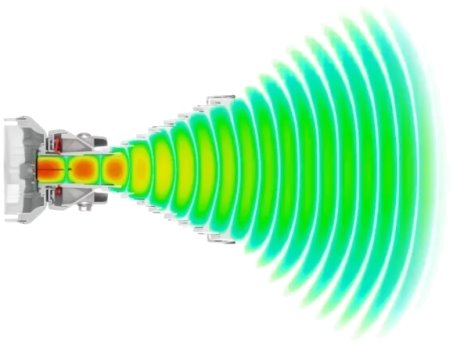

Symmetrical Sectors feature industry changing TwistPortTM Connector, our patent pending quick-locking waveguide port. TwistPortTM is virtually lossless: there are no coaxial RF connectors or RF cables, that cause significant signal loss. Connection and disconnection is brilliantly simple "twist and snap" and can be done with one hand.

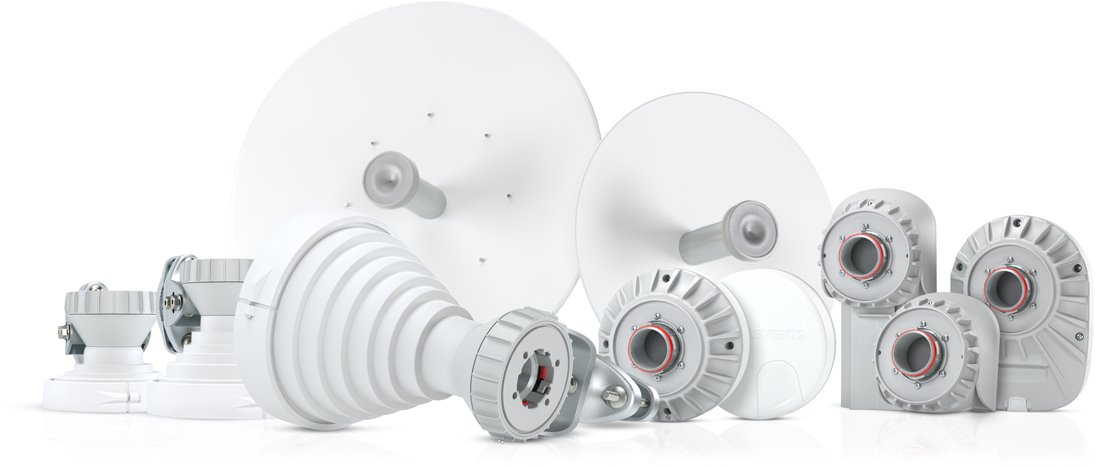

TwistPort Adaptors make most popular connectorized radios and MikroTik RouterBoards compatible with TwistPort antennas. Integration into TwistPort eco-system ensures the benefits of low loss, high scalability, easy co-location, simple deployment and easy maintenance.

Download

https://rfelements.com/assets/Uploads/Datasheet-TP-ADAP-C5c.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,8
Wireless frequency
5 GHz
RF connectors
TwistPort
Purpose
Outdoor
Material
Aluminum, UV stabilized ABS plastic
Operating temperature [°C]
-40 up to 60
Weight [g]
400
Width [mm]
112
Height [mm]
130
Depth [mm]
112
