RF elements Symmetrical Horn Sector antenna with TwistPort, 5GHz, 12dBi, 70°, Gen2
Planned Delivery Date by Courier to you 01-01-2025
Product description
Symmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPort connector. Deployed in field since 2014, they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection, network scalability and throughput increase.
Improvements of 2nd generation
- Lightweight design
- Holder
- Easier mounting on the opposite side
- Improved front cover

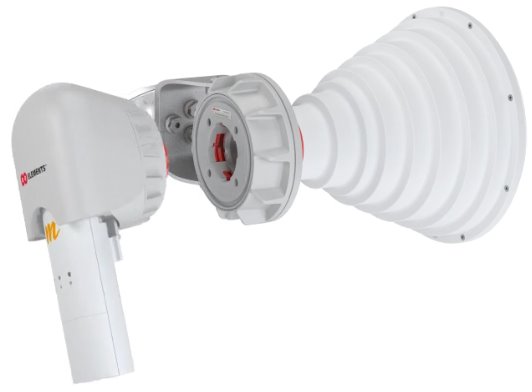

TwistPort connector
Symmetrical Horn TP Antennas feature our industry-changing TwistPort connector, a patent-pending quick-locking waveguide port. TwistPort is virtually lossless: with radios built according to our Reference design, there are no coaxial RF connectors or RF cables that cause signal loss. Connecting radios is brilliantly simple - “twist and lock” - all done with one hand!

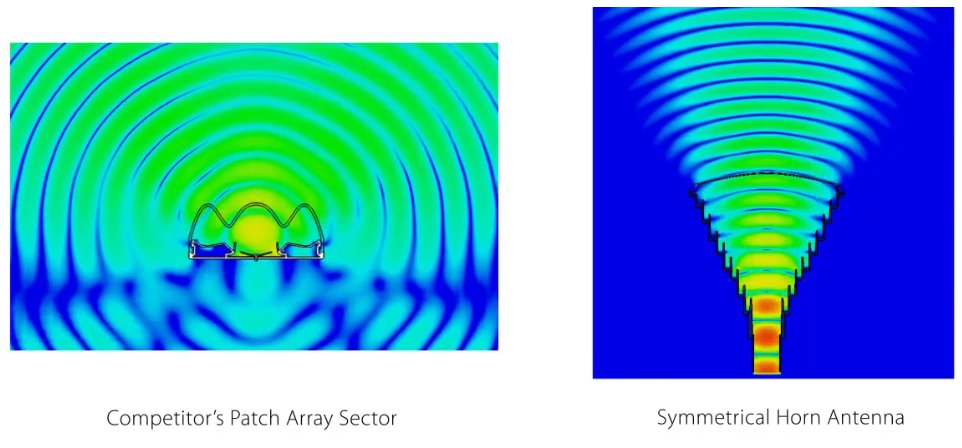

No Side Lobes
Symmetrical Horn TP Antennas have no side lobes, they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties, the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently, being basically "deaf" outside their main beam.

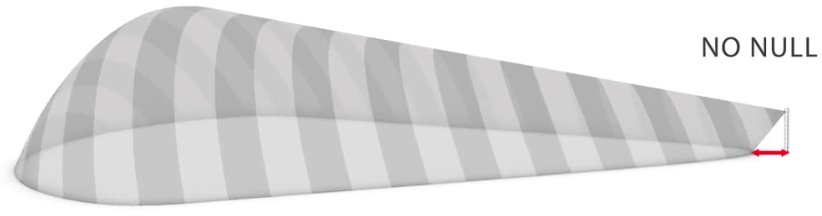

Coverage Without Null
Mainstream sector antennas have a radiation pattern that is very wide in azimuth cut but very flat in elevation cut. If an AP is too high, the customers that are too close will suffer from low AP signal.

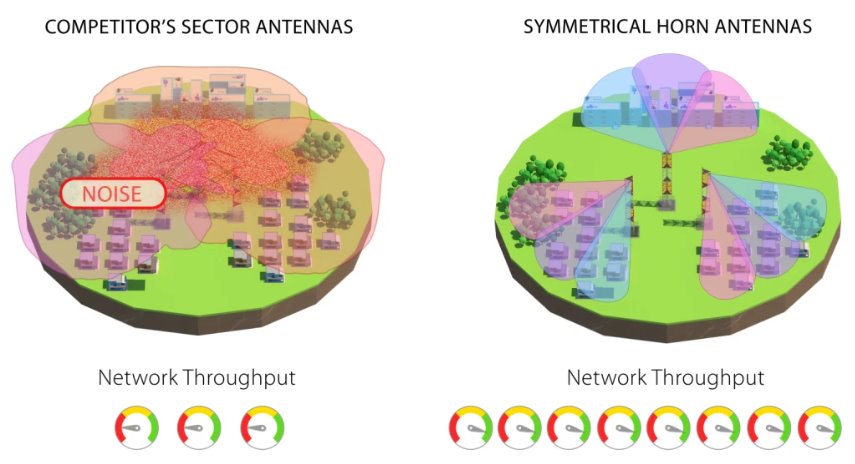

Breakthrough Scalability
Symmetrical Horn TP Antennas offer breakthrough scalability of wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than a traditional sector technology.

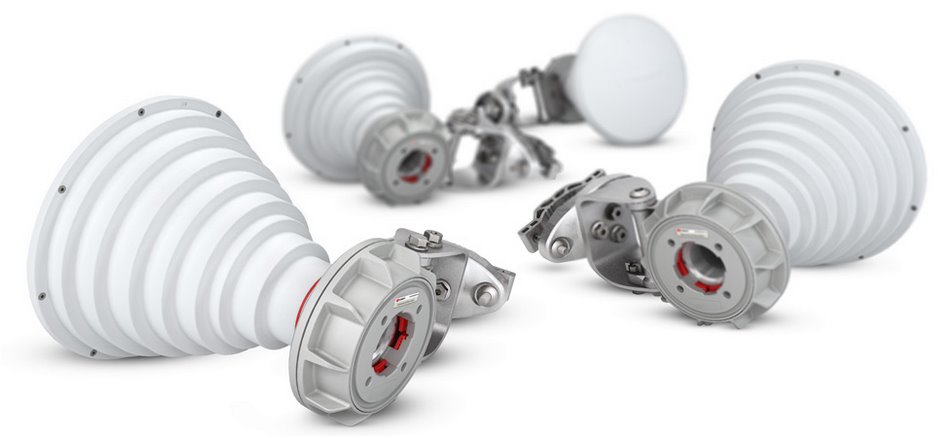

Symmetrical Horn TP Antennas come with precise radiation angles, ranging from 30 to 90 degrees: a wide range of models suitable for any situation.

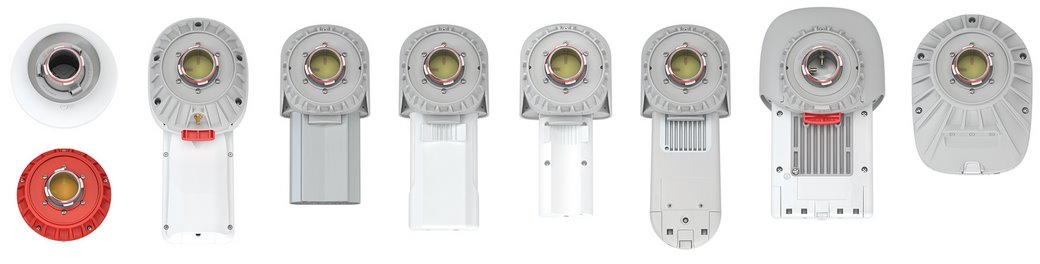

Cross-Platform Compatibility
Our wide range of TwistPort Adaptors allows you to connect most popular connectorized radios from other vendors, such as UBNT, Mimosa, MikroTik or Cambium Networks, directly to any TwistPort-enabled antenna.
Robust and Durable

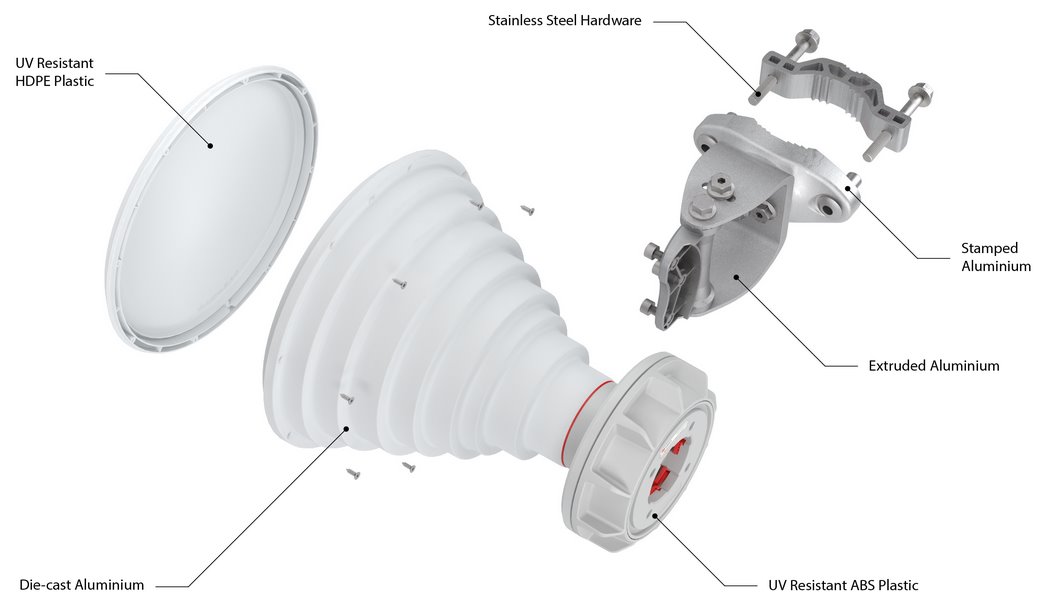

Symmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. We use only the best materials: die cast, stamped and extruded aluminium; high quality ABS plastic, high density polyethylene; and stainless steel hardware.
