Ubiquiti UniFi switch USW-Pro-Max-16

Ubiquiti UniFi switch USW-Pro-Max-16
Вашата цена с ДДС (20.0%)
581.77 лв
✅ В наличност 90+ Бр.
Delivery Планирана Дата Доставка на Куриер до Вас 04-12-2024
Ubiquiti
Производител
Продуктов номер
USW-Pro-Max-16
Продуктов Код
RL027.117
Гаранция
24 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Ubiquiti Pro Max 16 is a new L3 switch that offers 4x 2.5 Gbps and 12x 1 Gbps ports. For optical interface connection, there are 2 SFP+ ports achieving speeds up to 10 Gb/s. The switch is powered via a USB-C 5V DC 25W.

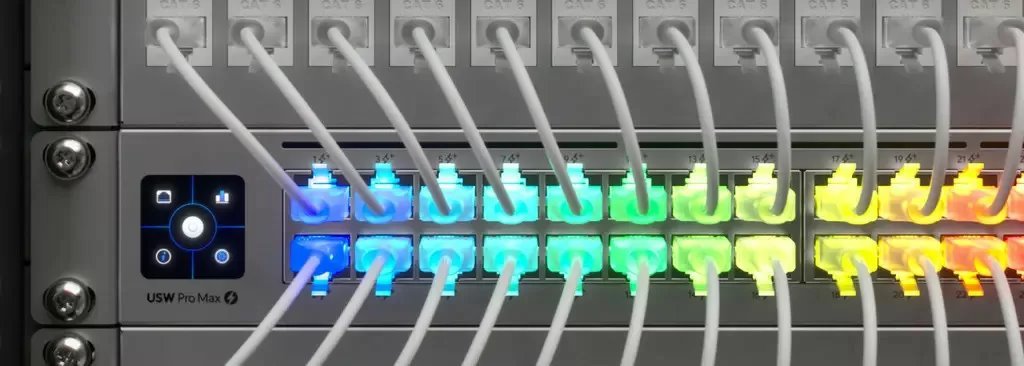

Etherlighting Technology

The switch supports Etherlighting technology, allowing color indication of port location, link speed, defined device types, PoE status or individual VLANs.

USW-Pro-Max-16 *To ensure proper functionality, it is recommended to use Ubiquiti UniFi Etherlighting Patch cables

Managed via UniFi Controller

The switch does not have web management but is centrally managed via UniFi Controller with support for the mobile app UniFi and offers an extensive set of advanced switching protocols and L2 features, including operational mode (switching, mirroring, or aggregation) per port. UniFi Network Controller and mobile app enable administrators to configure and monitor virtually all switch features in a graphical user interface from anywhere.

Package Contents

  • Device
  • DC Power Adapter
  • Mounting Kit

Свали

https://dl.ui.com/qig/usw-pro-max-16/#index
Свали Quick Guide
https://techspecs.ui.com/unifi/switching/usw-pro-max-16#datasheet
Свали Datasheet

Технически параметри

LAN ports
Design
Rackmount, On the wall, Desktop
Switchning capacity [Gbps]
84
Packet forwarding rate [Mpps]
62
Management
UniFi Network
Features
L3, VLAN, DHCP snooping
Power type
USB-C
Fans
No
LAN ports
16
LAN speed
(12) 10/100/1000Mbps + (4) 10/100/2500Mbps
Max. LAN ports speed
2.5G
SFP+ cages
2 (1G/10G support)
Optical interfaces
(2) 1G/10Gbps
Max. power consumption [W]
25
Chassis design
Metal
Power via connector/terminal
5V DC
Buttons
Reset
Operating temperature [°C]
-5 up to 40
Width [mm]
325
Height [mm]
44
Depth [mm]
160
Default IP address
Dynamic from DHCP
Other features
Touchscreen
