TP-Link SG6654X Omada 48-Port Gigabit Stackable L3 Managed Switch

TP-Link SG6654X Omada 48-Port Gigabit Stackable L3 Managed Switch
Вашата цена с ДДС (20.0%)
4,672.52 лв
✅ В наличност < 10 Бр.
Delivery Планирана Дата Доставка на Куриер до Вас 04-12-2024
TP-Link
Производител
Продуктов номер
SG6654X
Продуктов Код
RL027.601
Гаранция
60 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.

SG6654X

Key features

  • 48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots
  • 216 Gbps switching capacity per unit
  • Physical Stacking for built-in redundancy and performance
  • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
  • Security Strategies: ACL, Port Security, DoS Defend, 802.1X

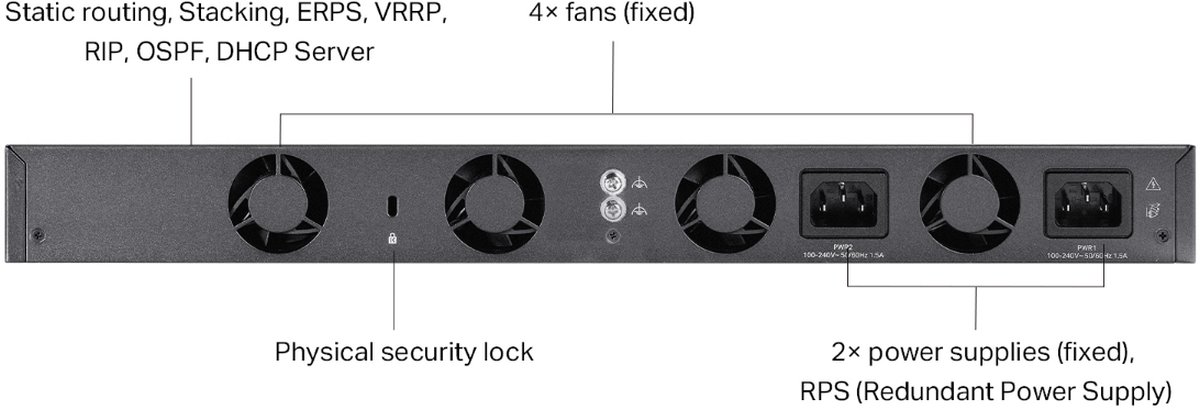

  • Highly Available with two internal fixed power supplies, VRRP, and ERPS
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON

Package contents

  • Device
  • (2) Power cords
  • RJ45 console cable
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber feet

Свали

https://download.discomp.cz/TP-LINK/Datasheets/SDN_10-Gigabit_L3_Stackable_Managed_Switch.pdf
Свали Datasheet
https://download.discomp.cz/TP-LINK/Userguides/SG6654X_UG.pdf
Свали User Guide

Технически параметри

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
216
MAC address table
32000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
160,7
Web management
Yes
Management
Omada controller, SSH, Telnet, Web management
Features
DHCP snooping, L3, QoS, Physical stacking, VLAN
Power type
Mains power (230V)
Fans
Yes
LAN ports
48
LAN speed
(48) 10/100/1000Mbps
Max. LAN ports speed
1G
Management LAN
(1) 10/100Mbps
SFP+ cages
6 (1G/10G support)
Optical interfaces
(6) 10Gbps
Redundant power supply
Yes
Max. power consumption [W]
40
Serial port
USB-C, RJ45
Chassis design
Metal
USB ports 2.0
2
Power via connector/terminal
230V AC
Buttons
Switch mode
Operating temperature [°C]
-5 up to 50
Width [mm]
440
Height [mm]
44
Depth [mm]
380
Default IP address
192.168.0.1
Default login and password
admin / admin
