TP-Link ES210GMP - Omada 10-Port Gigabit Easy Managed Switch with 8-port PoE+

TP-Link ES210GMP - Omada 10-Port Gigabit Easy Managed Switch with 8-port PoE+
Вашата цена с ДДС (20.0%)
227.87 лв
❌ Артикулът не е наличен. Няма възможност за поръчка.
Delivery Без потвърдена дата на доставка
TP-Link
Производител
Продуктов номер
ES210GMP
Продуктов Код
RL028.783
Гаранция
60 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

ES210GMP by TP-Link is a manageable L2 switch with PoE functionality, featuring 8 Gigabit LAN ports supporting 802.3af/at PoE. For uplink, it includes 1x Gbit RJ45 + 1x Gbit combo SFP/RJ45, enabling expansion through an optical network. The switch has a total PoE budget of 123W to power devices connected via cable. Additionally, the switch can be conveniently mounted in a 19" rack using rack ears included in the package. For quiet operation, the switch is designed without fans.

ES210GMP

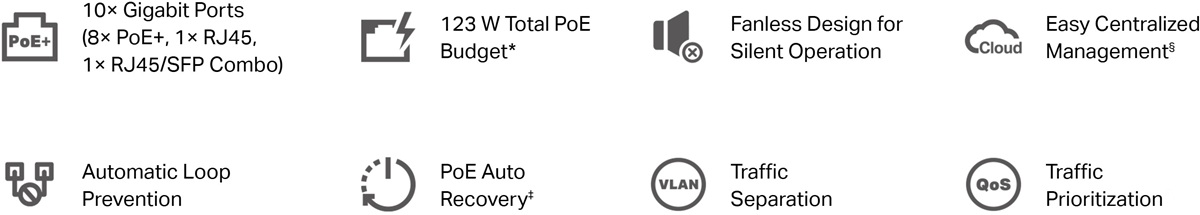

Key Features

  • 123 W PoE Budget, 8× 802.3at/af PoE (up to 250m at 10 Mb/s)

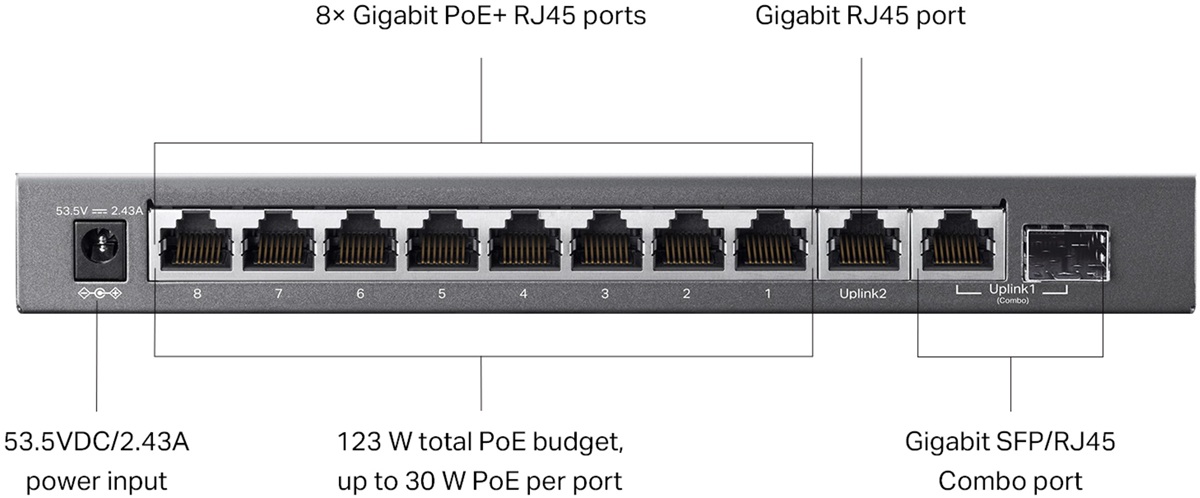

  • 8× Gigabit LAN with PoE functionality and 1× Gbit RJ45 port + 1x Gbit SFP slot
  • Integration into Omada SDN: Zero-Touch Provisioning, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized management: Cloud access and Omada app for easy management
  • IGMP Snooping, VLAN, L2 features
  • Quiet operation, metal chassis
ES210GMP

Omada Controller

The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, and Gateway routers, providing 100% centralized management in the cloud. Omada creates a highly scalable network, managed from a single interface. It offers seamless wireless and wired connectivity, ideal for hospitality, education, retail, offices, and more.

Package Contents

  • Device
  • Power adapter (53.5V / 2.43A)
  • Rubber pads

Свали

https://download.discomp.cz/TP-LINK/Datasheets/Datasheet_ES210GMP(UN)1.0.pdf
Свали Datasheet
https://download.discomp.cz/TP-LINK/QSG/7106511618_ES205G,ES205GP,ES210GMP(UN),%20ES206GP,%20ES208G_IG.pdf
Свали Installation Guide

Технически параметри

LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
20
MAC address table
8000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
14,9
Web management
Yes
Management
Web management, Omada controller
Features
VLAN, QoS
Power type
Mains power (230V)
Fans
Yes
LAN ports
8
LAN speed
(8) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
1 (1x Combo)
Optical interfaces
(1) 1000Mbps Combo
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
123
Long range PoE - up to 250m
Yes
Chassis design
Metal
Power via connector/terminal
53,5V/2,43A
Operating temperature [°C]
0 up to 40
Width [mm]
209
Height [mm]
26
Depth [mm]
126
Default IP address
192.168.0.1
Default login and password
admin / admin
