Ubiquiti NanoBeam NBE-5AC-Gen2, 19dBi - Bazar

Ubiquiti NanoBeam NBE-5AC-Gen2, 19dBi - Bazar
разопаковано
-8%
Вашата цена с ДДС (20.0%)
161.14 лв
✅ В наличност < 10 Бр.
Delivery Планирана Дата Доставка на Куриер до Вас 18-06-2025
Ubiquiti
Производител
Продуктов номер
B-NBE-5AC-Gen2
Продуктов Код
RL029.669
Гаранция
6 месеца

Описание на продукт

Стоката е разопакована, може да не е в оригиналната опаковка или опаковката да е повредена. Въпреки това стоките са пълни и без повреди.
Това е автоматичен превод. Оригиналния текст може да видите тук

The product is complete only unpacked.

Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Management Wi-Fi Radio

The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

uMobile

Improved Surge Protection

The NanoBeam AC features enhanced protection against ESD events.

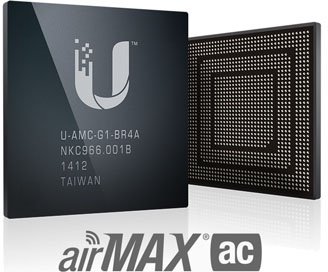

Superior Processing

Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance

The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Plug and Play Installation

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

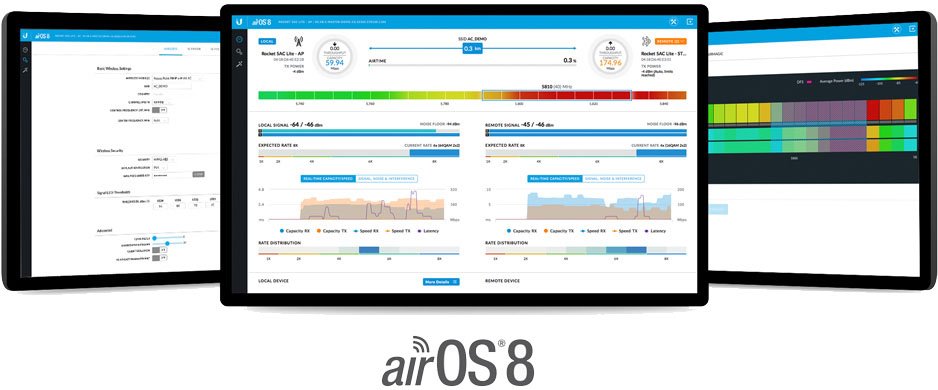

Now with airOS 8

airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Package contains

  • Device
  • Gigabit PoE power adapter 24V/0.5A
  • Power cord
  • Metal strap
  • Ball joint mount + lock ring

Свали

https://dl.ui.com/datasheets/NanoBeam_ac/NanoBeam_AC_Gen2_DS.pdf
Свали Datasheet
https://dl.ui.com/guides/airOS/airOS_UG_V80.pdf
Свали AirOS 8 User guide
https://dl.ui.com/qsg/NBE-5AC-Gen2/
Свали Quick Guide

Технически параметри

LAN ports
Power over Ethernet
24V DC
Operating mode
Client, Repeater, AP Router, Access Point, Client Router (wisp)
Wireless frequency
5 GHz
WiFi standards
airMAX ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
25
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
19
LAN ports
2
LAN speed
(2) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
Max. power consumption [W]
8,5
Buttons
Reset
Operating temperature [°C]
-40 up to 80
Weight [g]
530
Width [mm]
189
Height [mm]
189
Depth [mm]
125
CPU
Atheros MIPS 74KC
CPU frequency [MHz]
720
IPv6 support
Yes
Default IP address
192.168.1.20
RAM [MB]
128
Default login and password
ubnt / ubnt
Other features
WiFi management radio
